Description:

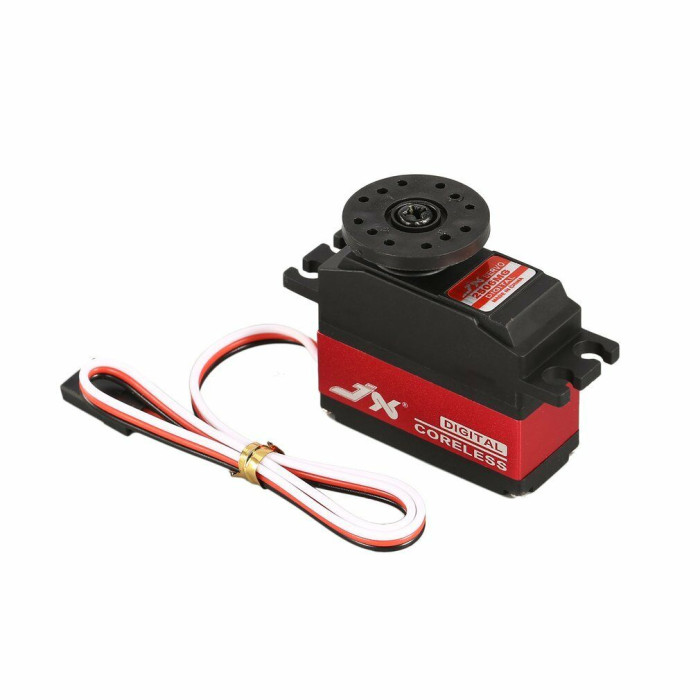

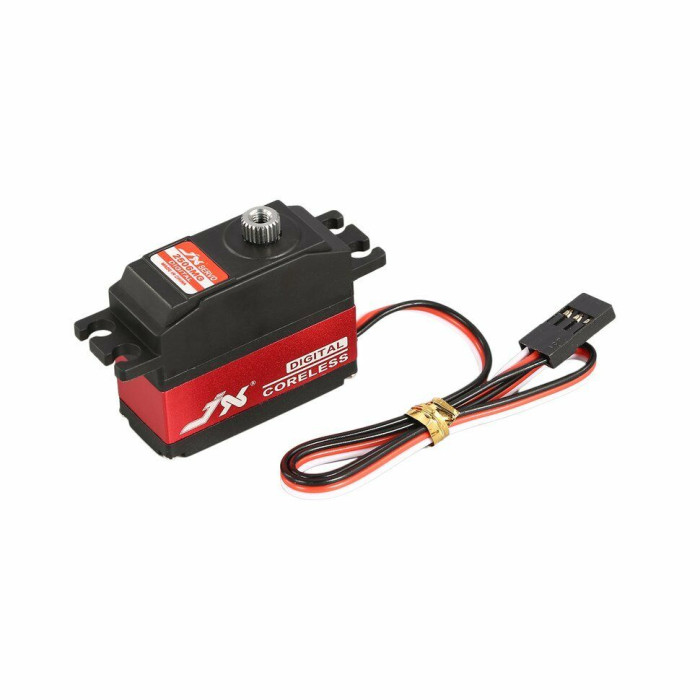

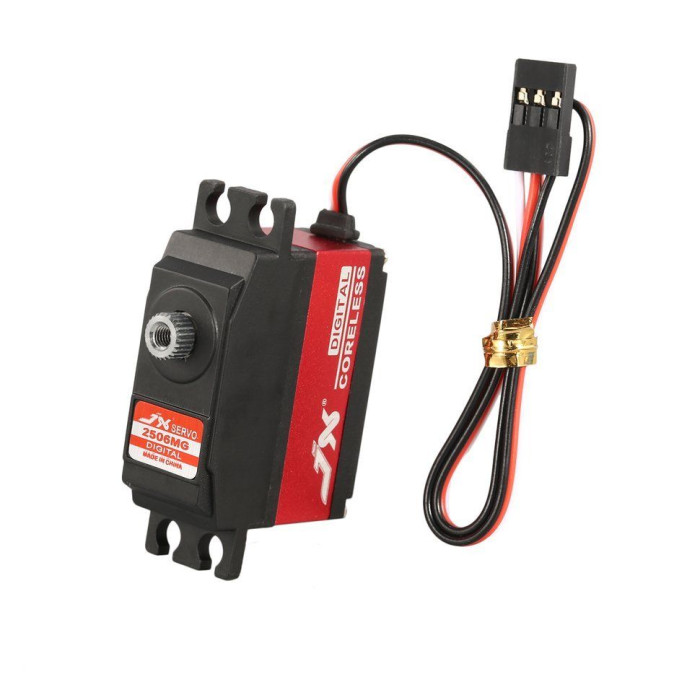

This is high performance programmable digital high voltage coreless Gyro servo,
suitable for 450 500 helicopter fixed-wing airplane.
Small size and light weight is conducive to the flight of RC models.

Features:
Special design: dual ball bearings, metal gear digital servo.
High quality: CNC aluminum middle hull, high performance programmable digital high voltage coreless gyro servo.
Light weight: small size and light weight, easy to install.
Large torque: 6V input voltage, the torque is up to of 6.6Kg/cm.
Suita for 450 500 helicopter fixed-wing airplane.

Specifications:
Brand: JX
Model: PDI-2506MG
Dead band: 1μs
Working frequency: 1520μs / 330Hz
Operating voltage: DC 4.8~6.0V
Motor: coreless motor

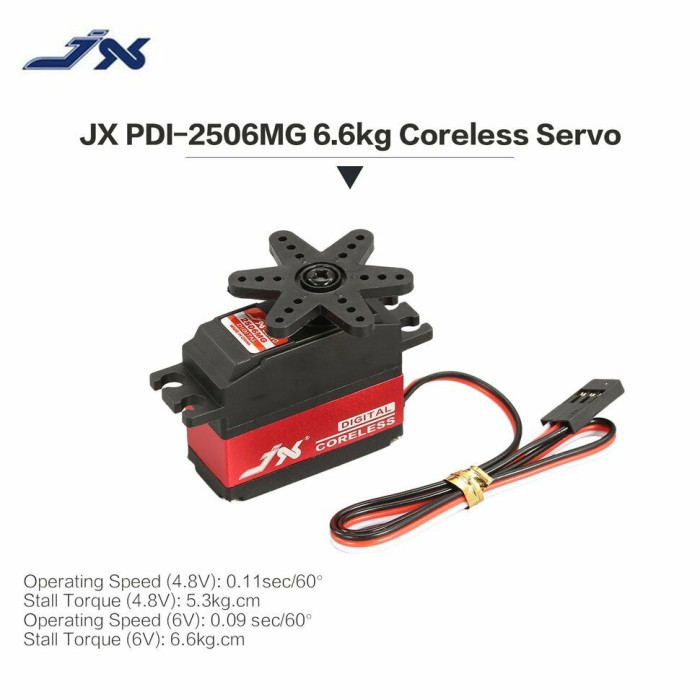

Operating Speed (4.8V): 0.11sec/60°
Operating Speed (6V): 0.09 sec/60°
Stall Torque (4.8V): 5.3kg.cm
Stall Torque (6V): 6.6kg.cm

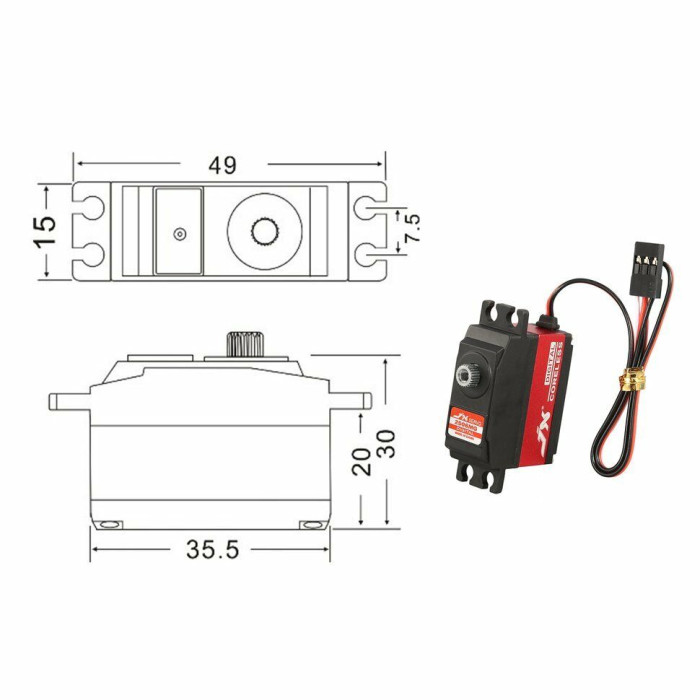

Dimensions: 33.5X15X30mm
Weight: 26.32 g (0.93oz)
Connector Wire Length: JR 180mm
Bearing: 2BB

Package information:
Package size: 6.2 * 4.9 * 3.8cm / 2.4 * 1.9 * 1.5in
Package weight: 44g / 1.6oz

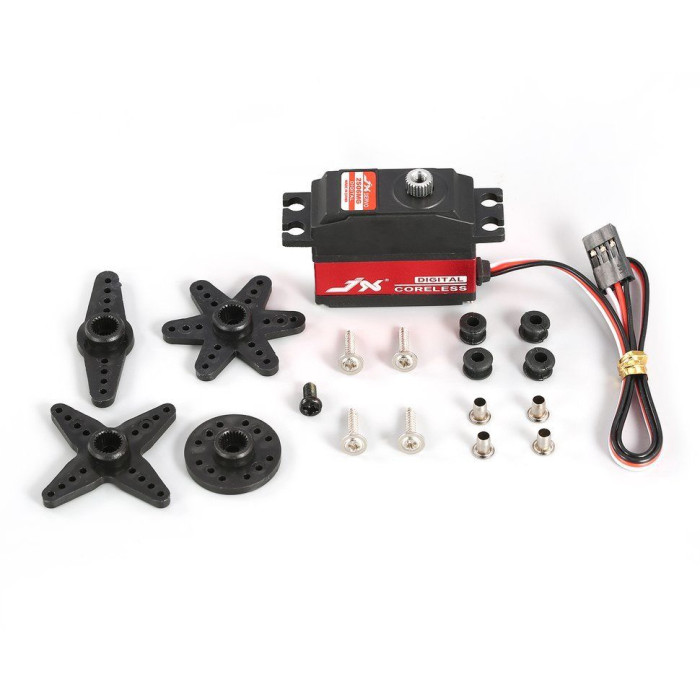

Package list:
1 * JX PDI-2506MG Servo
1 * Spare Parts Set

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

JX PDI-2506MG 25g Metal Gear Digital Servo

  • Product Code: PDI-2506MG
  • Availability:
    In Stock
  • $21.00
