DATA SHEET
| Serial | ER-005 |
| Strut Diameter (mm): | 10mm (axle 5mm) |
| Weight (gr): | 63 |
| Max weight | Up to 6kg |
| Torque | 12kg/cm |
| Rotation angle | 90° |
| Rotation direction | Inside (jack side) |
| Working voltage (Volts): | 5 to 6.4v |
| Connection: | JP Hobby JST type plug (+/-) for JP Hobby retracts |
| Material | Aluminium |
| Mounting | Low |
Specifications:
- Material: Aluminium
- Struts diameter: 10mm
- Pin Diameter Size: 5mm
- Equipped with a trunion block ref. JPH-TRU ER-005-5mm(I)
- For plane: up to 6 kg (possible 7-8kg)
Technical Specifications:
- Retract weight: 63g
- Retract sizes: 26mm x 73mm x 18mm
- Retract mounting plate sizes: 33mm x 37mm
- Length with motor: 74mm
- Working Voltage: 5-6.4V
- Speed: 5.2 sec (5v) - 4.3 sec (6v)
Package:
1x Main Retract JP Hobby ER-005 5mm unit (6kg/Low/Inside)
Requires:
- JP Hobby sequencer (Please pay attention that only JP Hobby sequencers are qualify to work in accordance of the JP Hobby products).

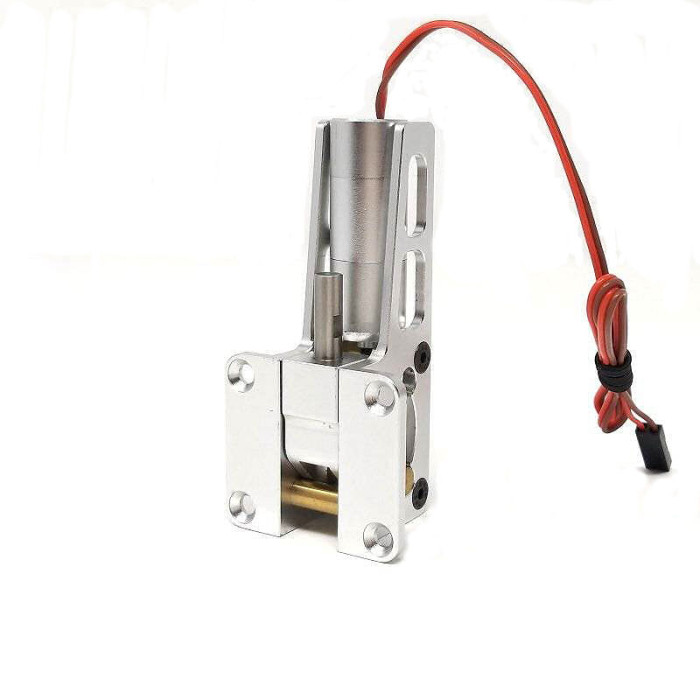

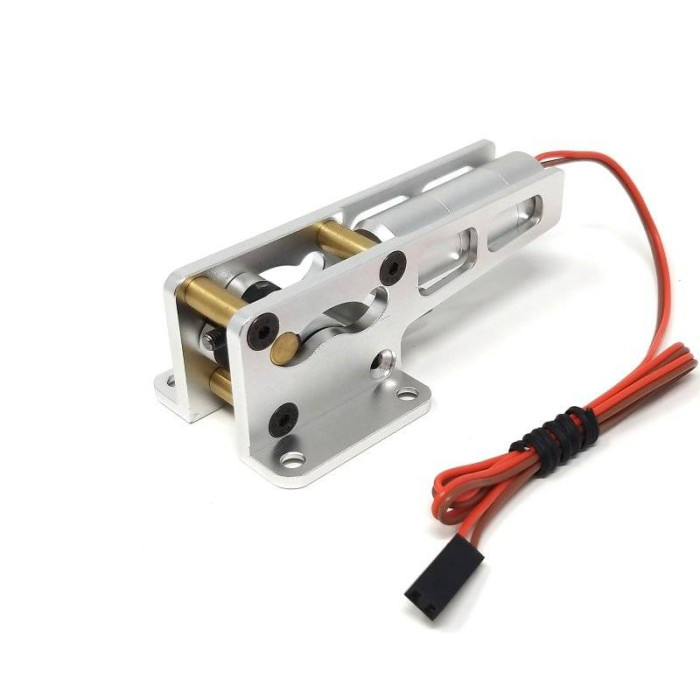

JP Hobby Electric Retract ER-005 5mm 6kg Low Inside
- Product Code: ER-005
- Availability: In Stock
-
$45.00
