DATA SHEET:

Serial ER-005
Strut Diameter (mm): 10mm (axle 5mm)
Weight (gr): 63
Max weight Up to 6kg
Torque 12kg/cm
Rotation direction Inside (jack side)
Working voltage (Volts): 5 to 6.4v
Connection: JP Hobby JST type plug (+/-) for JP Hobby retracts
Material Aluminium
Mounting Low

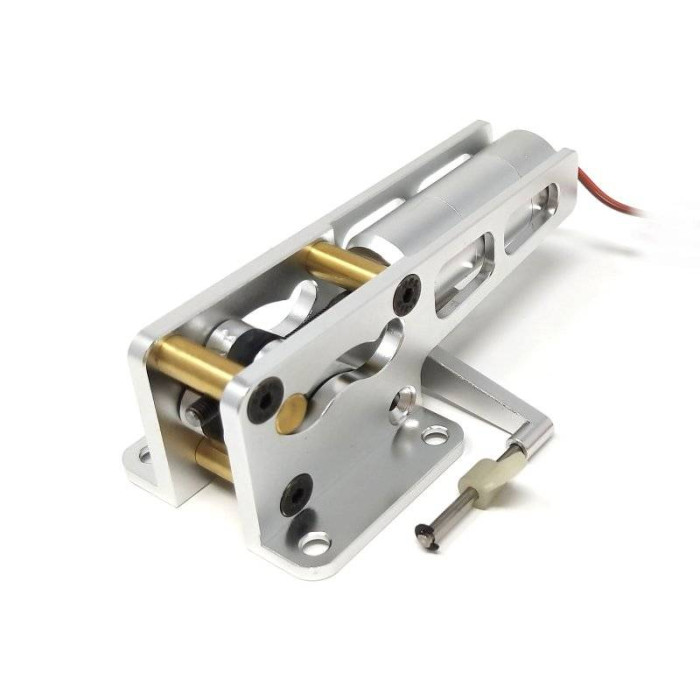

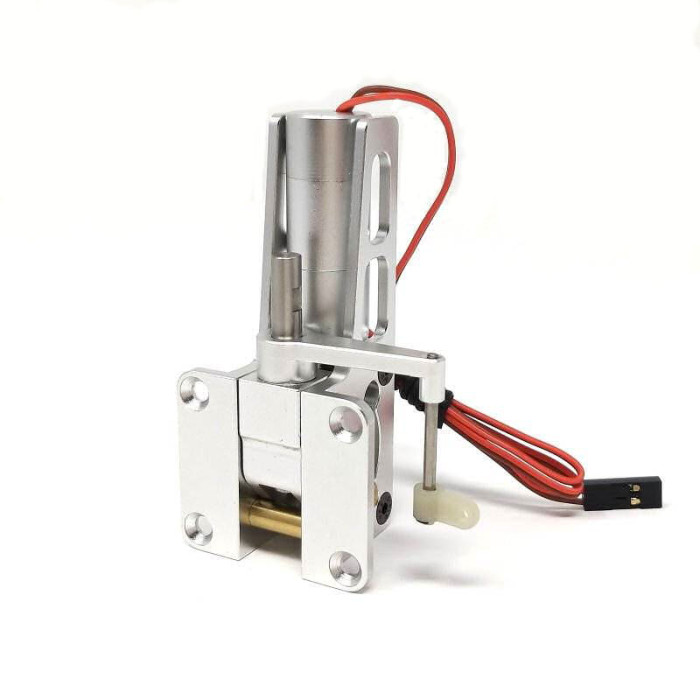

JP Hobby ER-005 5mm electric nose retract for 10mm oleo struts for models up to 6kg (Mounting position low and jack side rotation)

Electric 100% CNC aluminium nose retract for planes up to 6kg for JP Hobby oleo struts ER-005 or equivalent with a 5mm diameter in the upper part. 90% inside rotation angle (jack side) and mounting position low.

Specifications

  • Material: Aluminium
  • Struts diameter: 10mm
  • Pin Diameter Size: 5mm
  • Equipped with a trunion block ref. JPH-TRU ER-0

Technical Specifications:

  • Retract weight: 63g

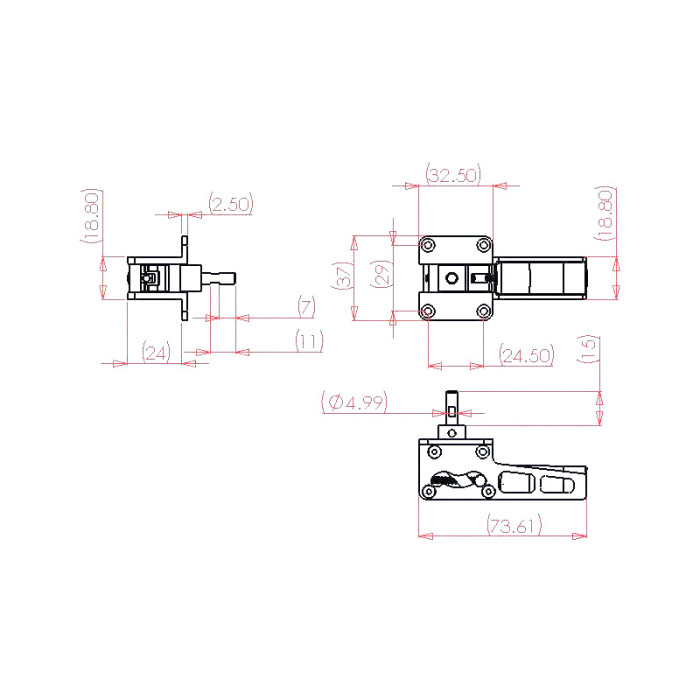

  • Retract sizes: 26mm x 73mm x 18mm
  • Retract mounting plate sizes: 33mm x 37mm
  • Length with motor: 74mm
  • Working Voltage:  5-6.4V
  • Speed: 5.2 sec (5v) - 4.3 sec (6v)

Package:

1x Nose Gear Retract JP Hobby ER-005 5mm unit (6kg/Low/Inside)

Requires:

  • JP Hobby sequencer (Please pay attention that only JP Hobby sequencers are qualify to work in accordance of the JP Hobby products).

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

JP Hobby Electric Nose Gear Retract ER-005 5mm 6kg Low Inside

  • Product Code: ER-005N
  • Availability:
    In Stock
  • $49.00
