JP Hobby ER-120 S Metal Struts Set + Brakes (T-one Mini T1 1.48m) + Controller

Electric Retract ER-120
> Model Weight: until 12kg
> Struts diameter: 12mm
> Angle: 3x 90 degrees
> Rotation direction: 3x Outside (opposite jack side)
> Mounting: 3x Low
> Wheels: 2x 65mm (with brakes) + 1x 50mm

CNC Machined aluminium articulated and mechanical suspended « scale » electric landing complete gear set including 50 and 60mm wheels with brakes system and 3 retracts with a JP Hobby V1 version controller retract box which includes an electrical magnetic brake controller. Main gear and single nose gear. For planes up to 12kg.

Specifications:

• Materials: Aluminium
• Suspension: mechanical
• Wheels: ball bearings mounted
• For planes up to 12kg
• Servo Plate with control for threaded rod and ball joints

Technical Specifications:

• Struts diameter: 12mm
• Main gear wheels diameter: 65mm
• Nose gear wheel diameter: 50mm
• Wheels axle diameter: 5mm
• Weight: 750g (for the complete set including the 3 struts, 3 retracts, wheels and the controller)

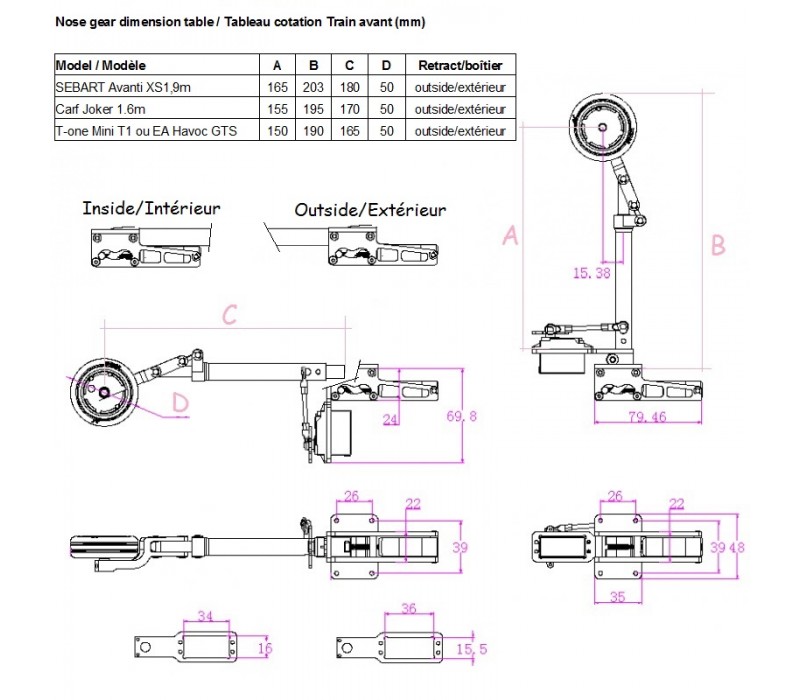

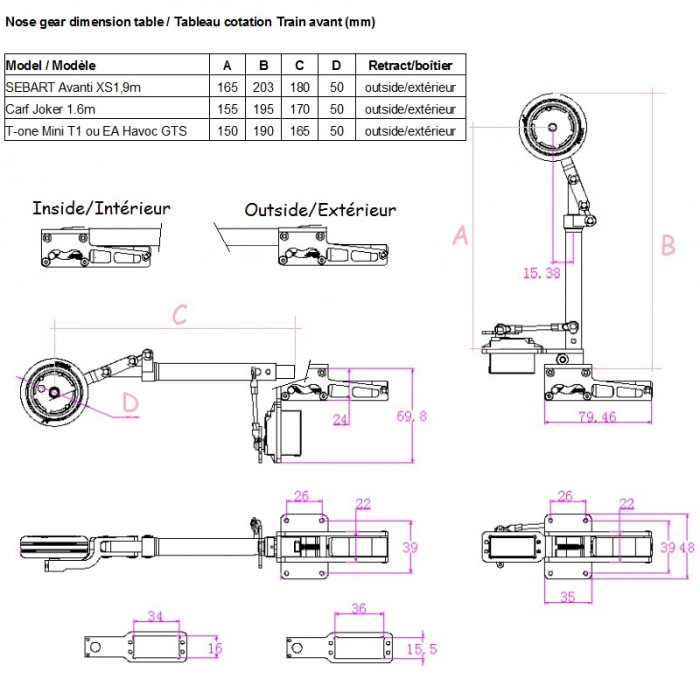

• Dimensions: for detailed dimensions, please refer to the pictures
• Working voltage: 5-8.4V (2S LiPo)
• Brakes working voltage: 7.2-30V

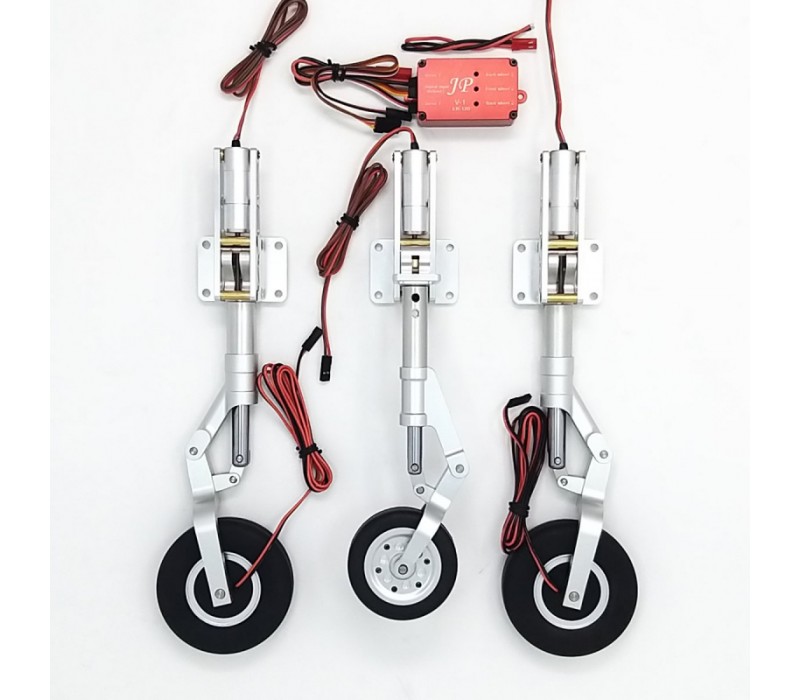

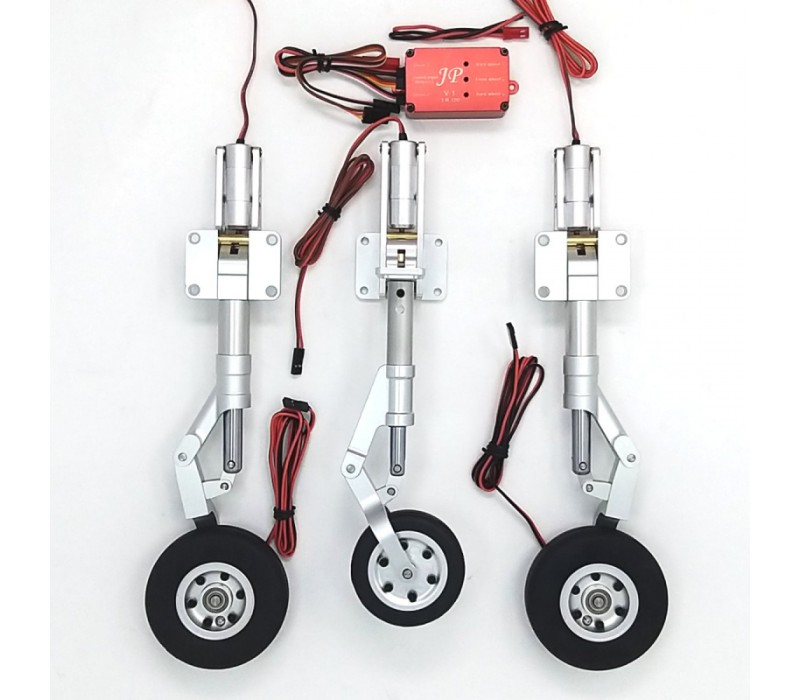

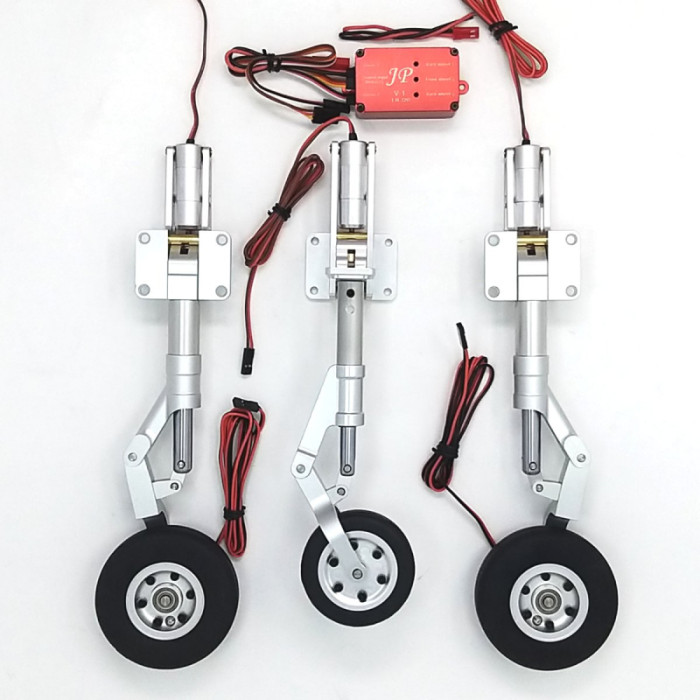

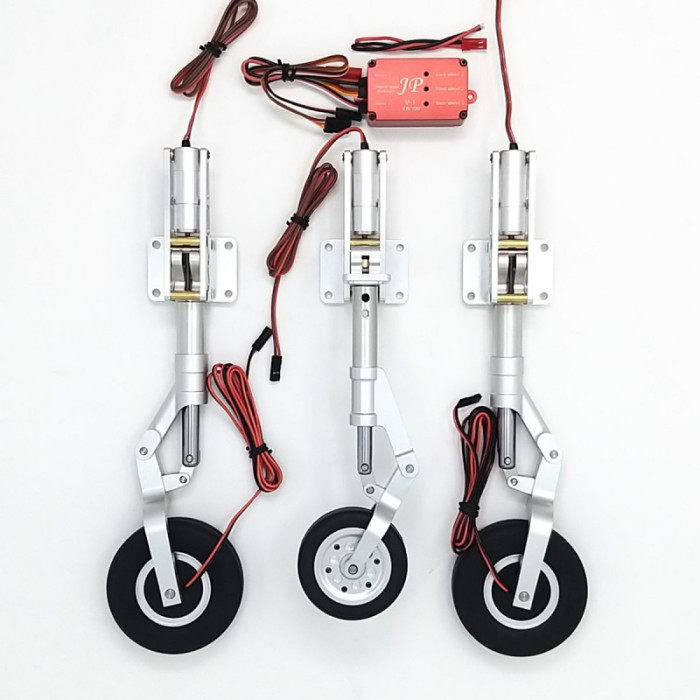

Package Content:

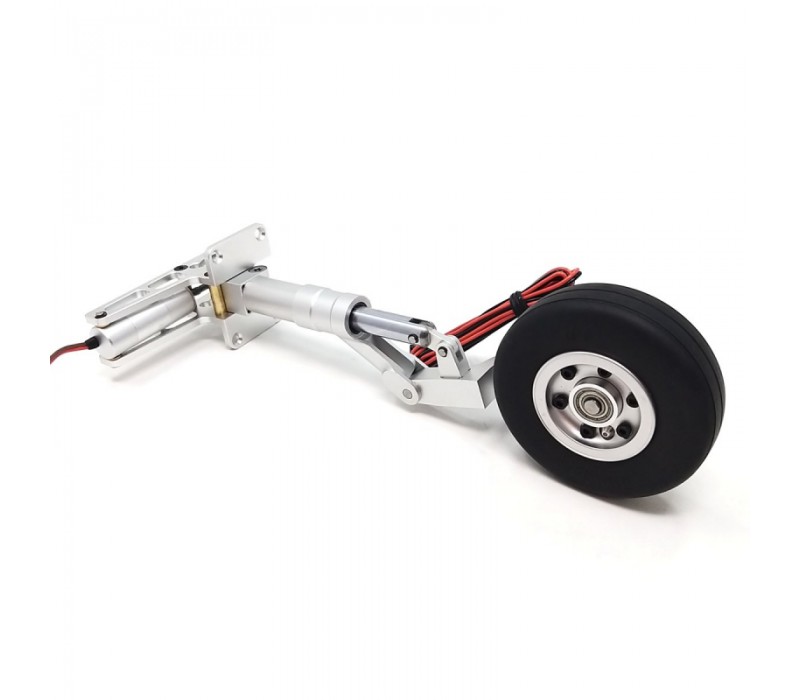

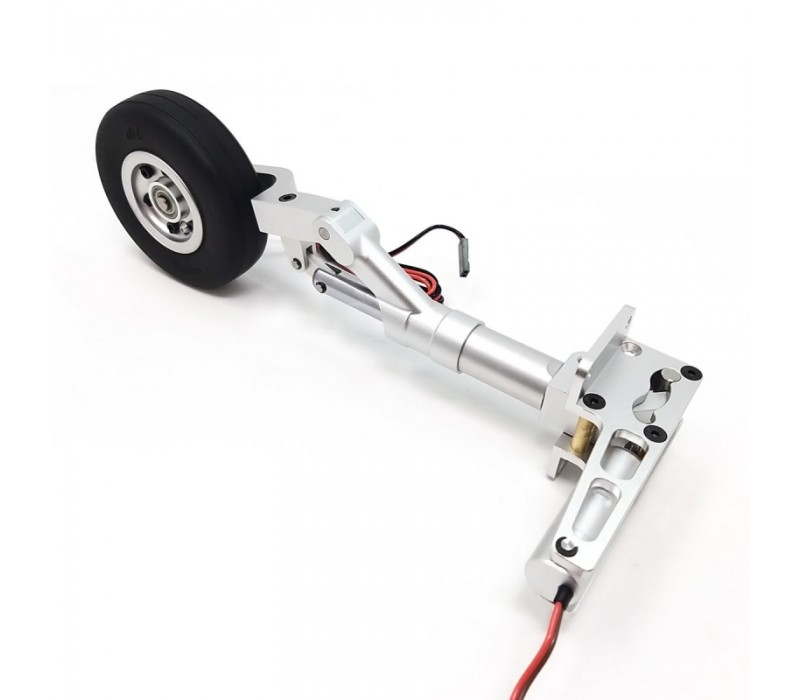

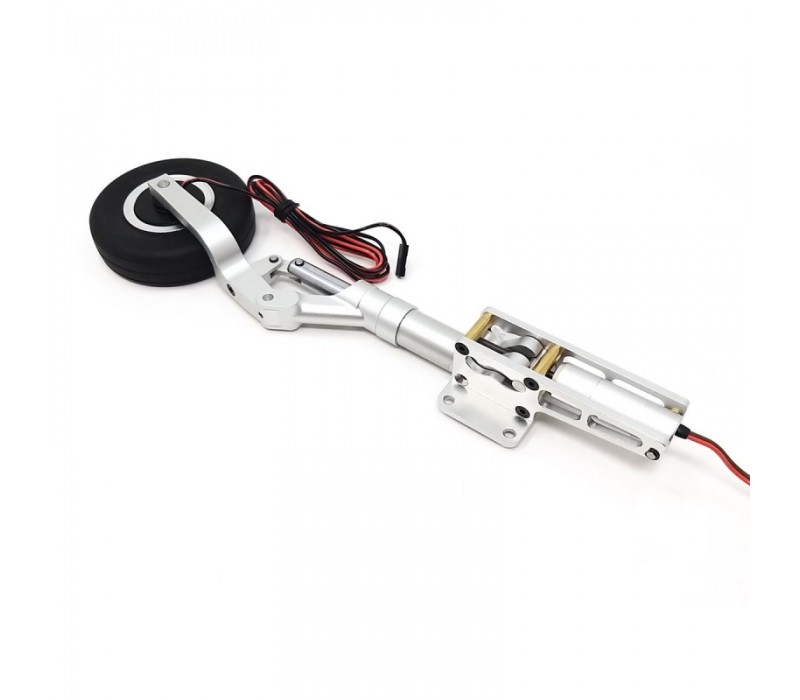

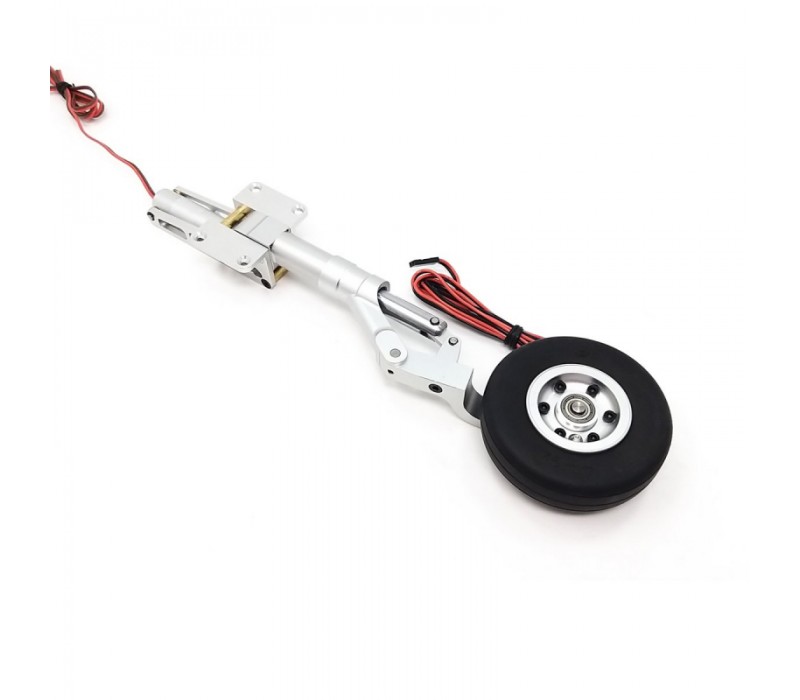

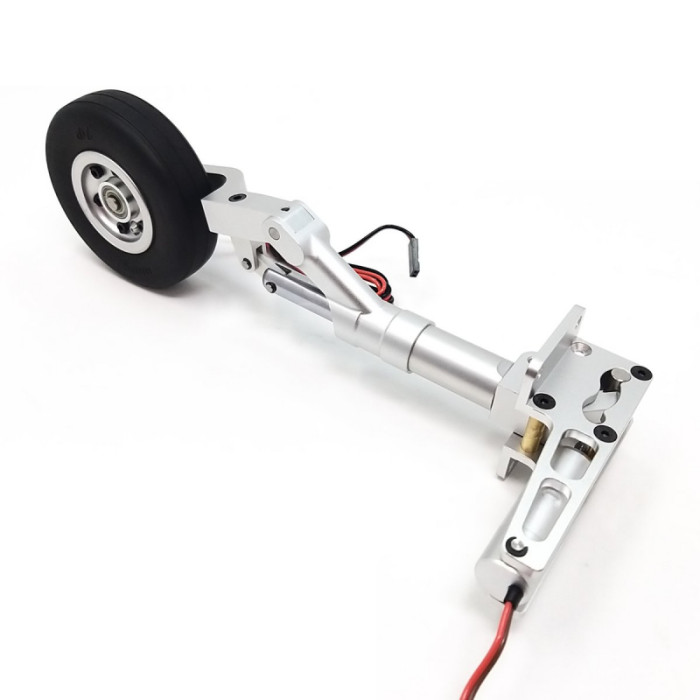

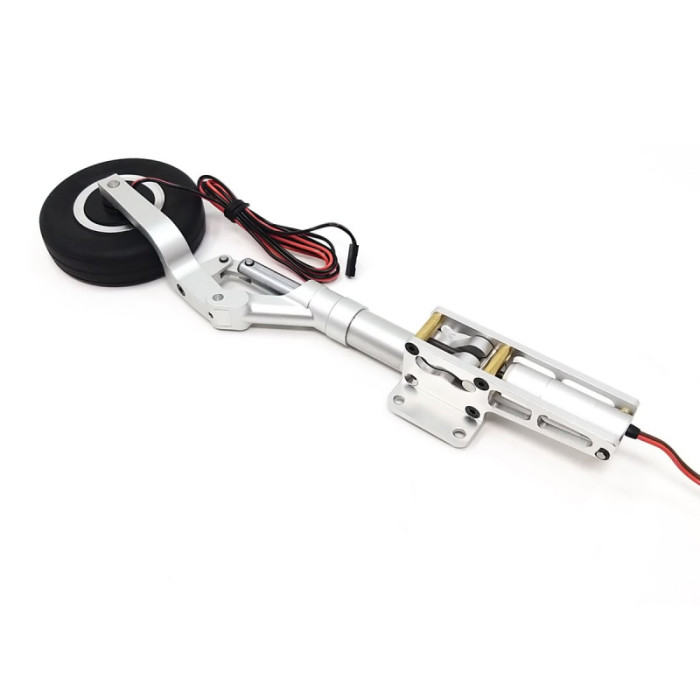

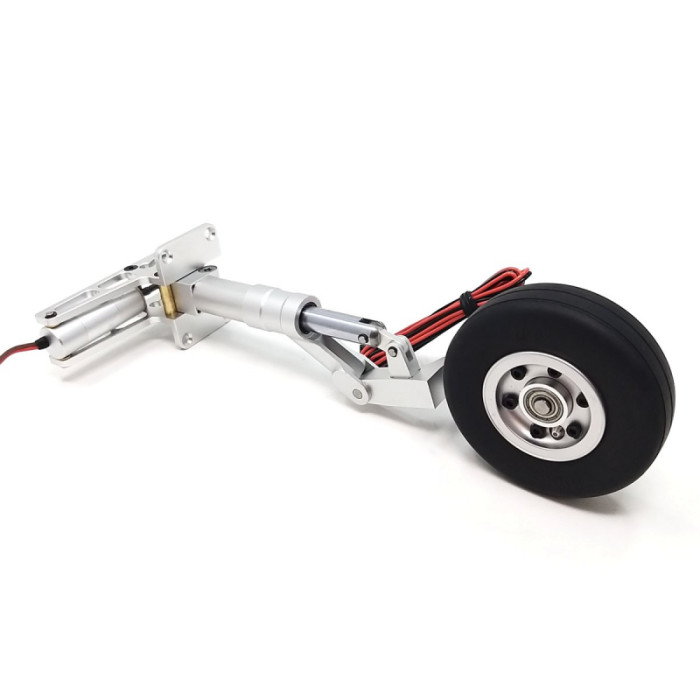

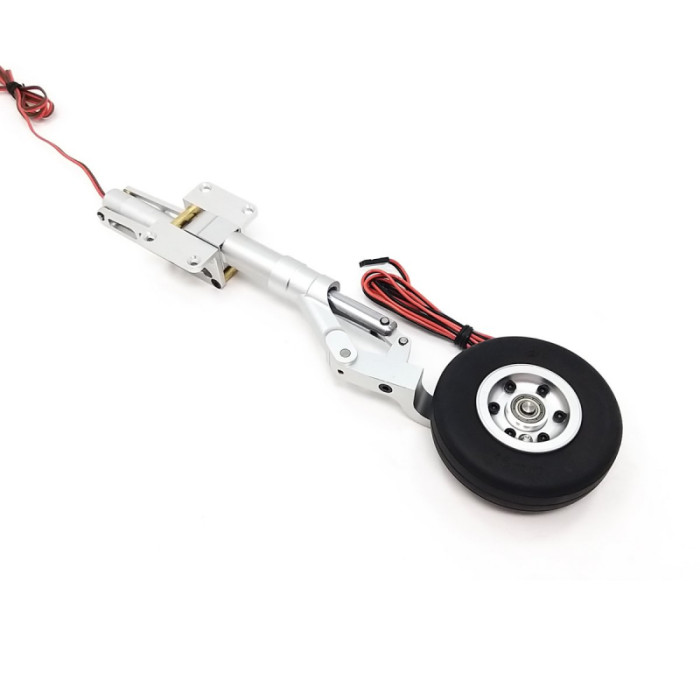

• 2x Scale metal struts for main landing gear equiped with 60mm wheels & brakes system

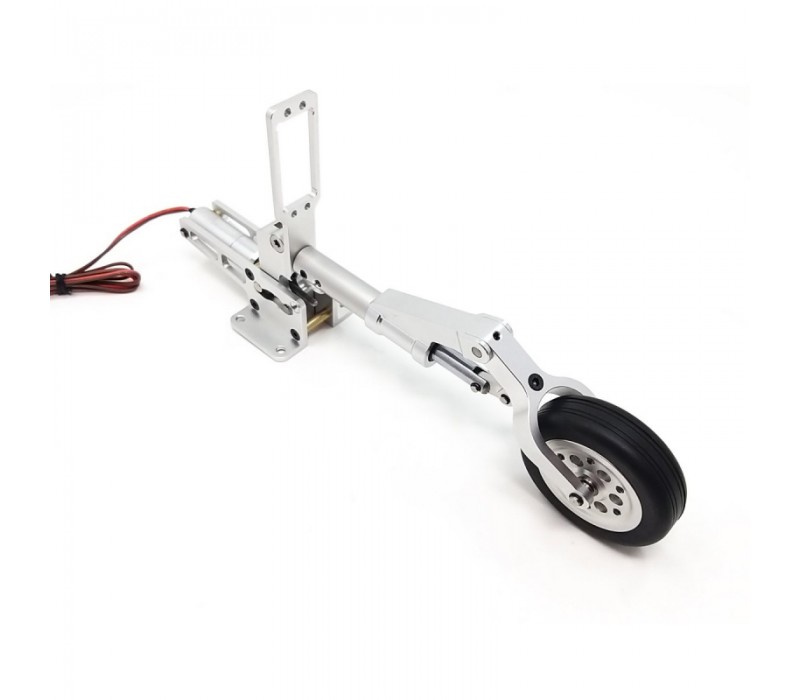

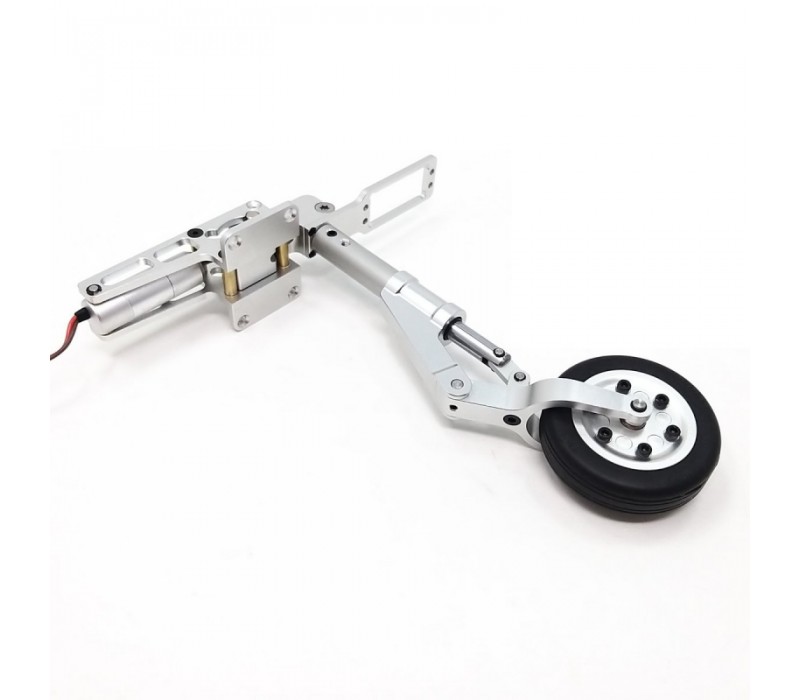

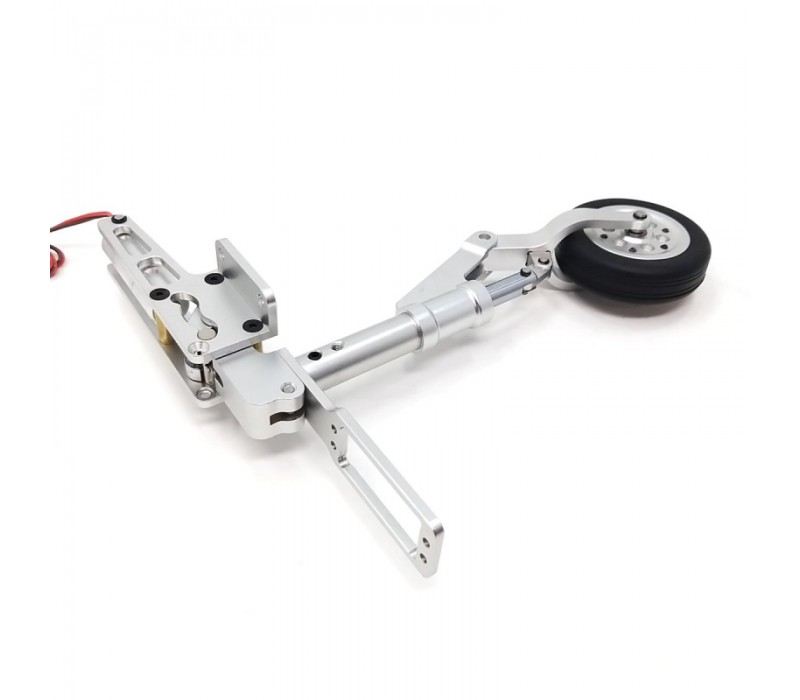

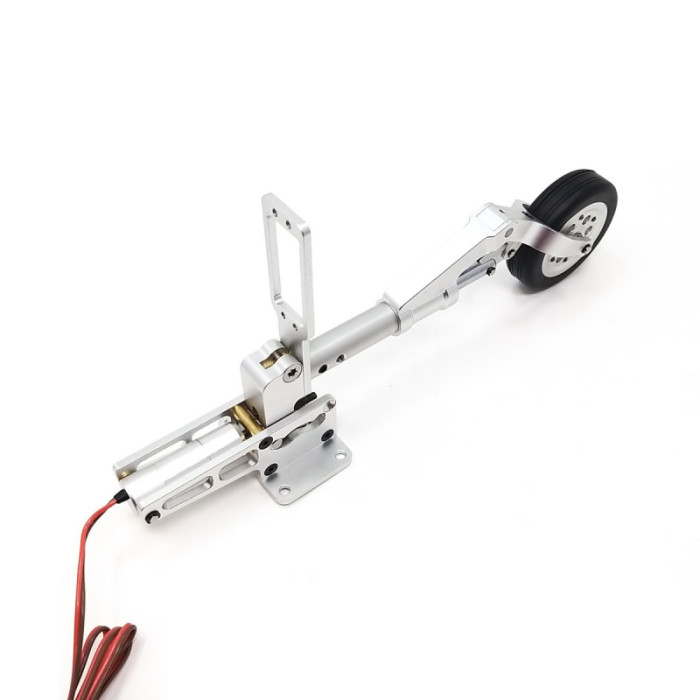

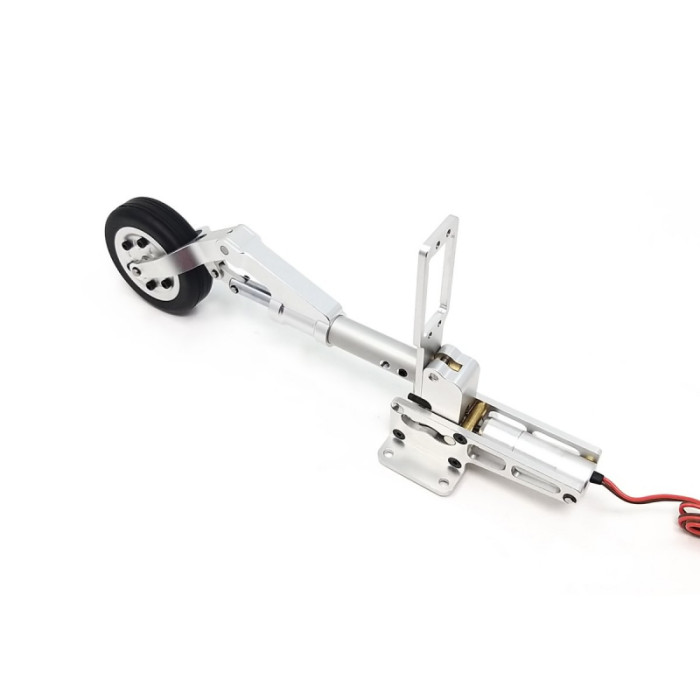

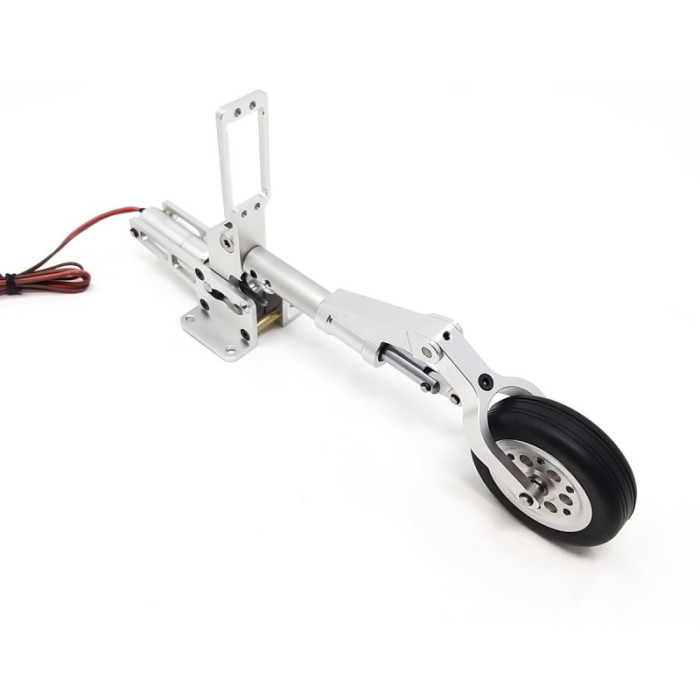

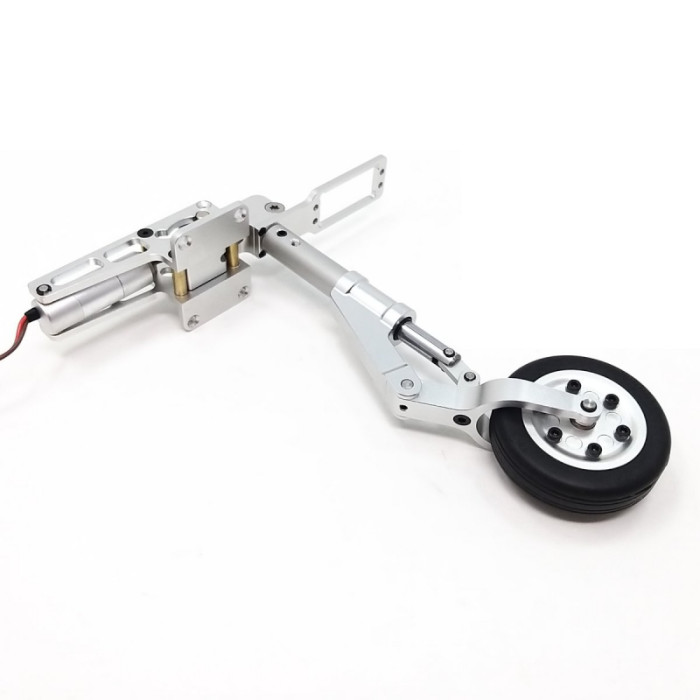

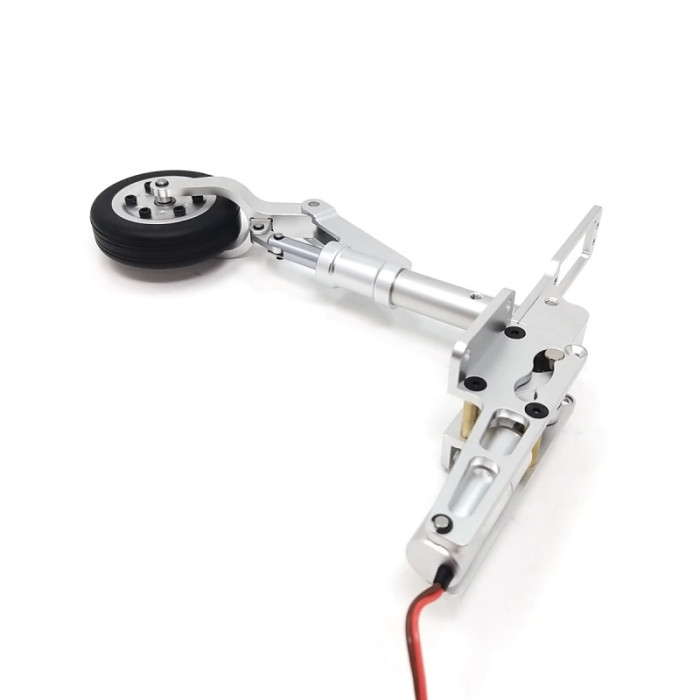

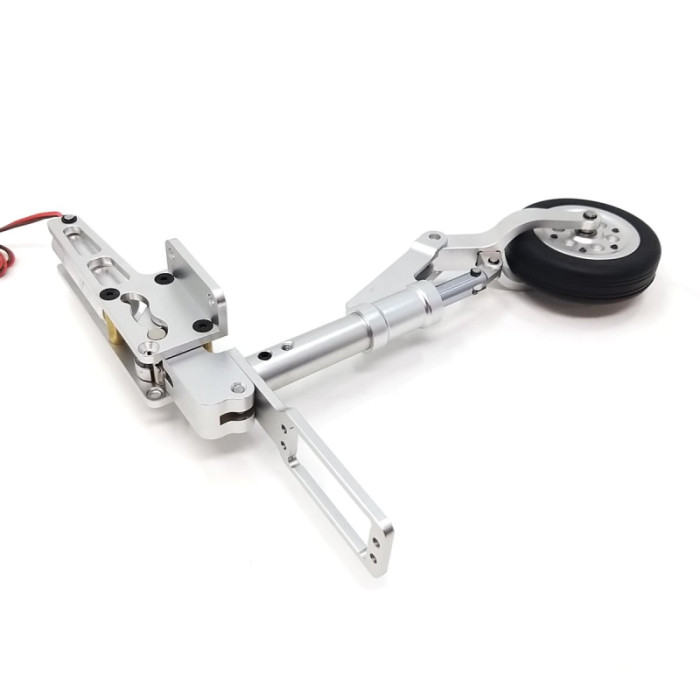

• 1x Scale metal strut for nose gear equiped with 50mm wheel and Plate
• 3x Electric Retracts JP Hobby ER-120 12mm (12kg/Low/Outside)
• 1x JP Hobby ER-120 V1 version All Integrated Controller Retract Box (doors opened when the gear is down)

Requires:

• 2 cells battery
• Nose direction servo (option available on this page)
