Electric Retract ER-080 (HSD 105mm Super Viper)

Specifications:

  • Materials: Aluminium
  • Suspension: mechanical
  • Wheels: ball bearings mounted
  • For planes up to 8kg
  • Servo Plate with control for threaded rod and ball joints

Technical Specifications:

  • Struts diameter: 12mm
  • Mounting Struts diameter: 9mm
  • Main gear wheels diameter: 60mm
  • Nose gear wheel diameter: 55mm
  • Wheels axle diameter: 5mm (Main) - 4mm (Nose)
  • Weight: 650gr (for the complete set including the 3 struts, 3 retracts, wheels and the controller)
  • Dimensions: for detailed dimensions, please refer to the pictures
  • Retracts working voltage: 5-8.4V (2S LiPo)
  • Brakes working voltage: 7.2-30V

> Model Weight: until 8kg
> Struts diameter: 12mm (9mm for mounting on retracts)
> Angle: 3x 90 degrees
> Rotation direction: 3x Inside (jack side)
> Mounting: 3x Low
> Wheels: 2x 60mm (with brakes) + 1x 55mm

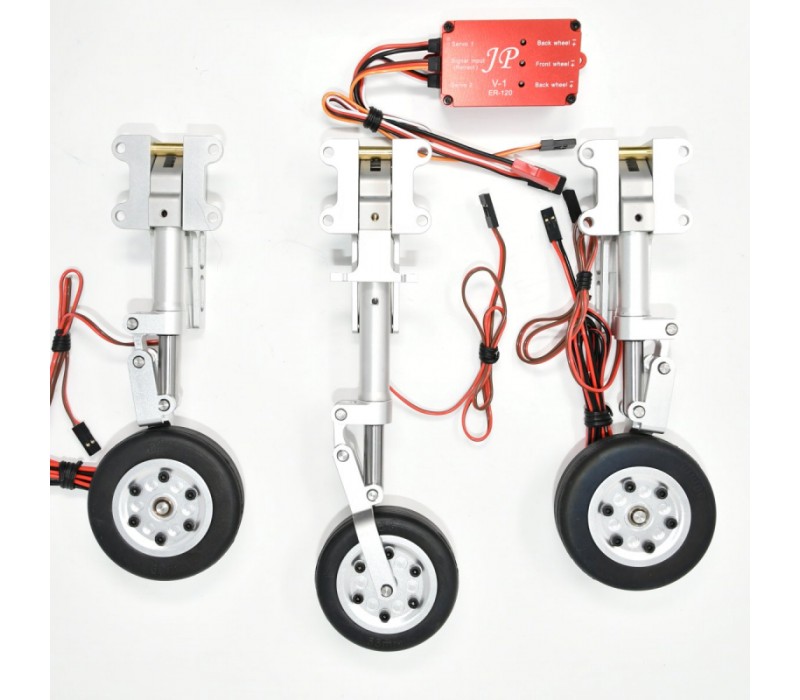

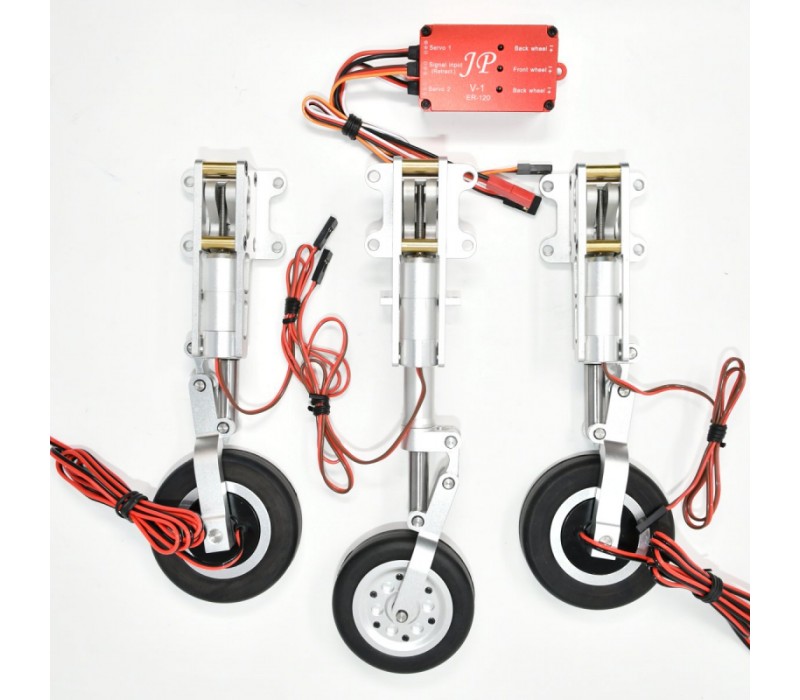

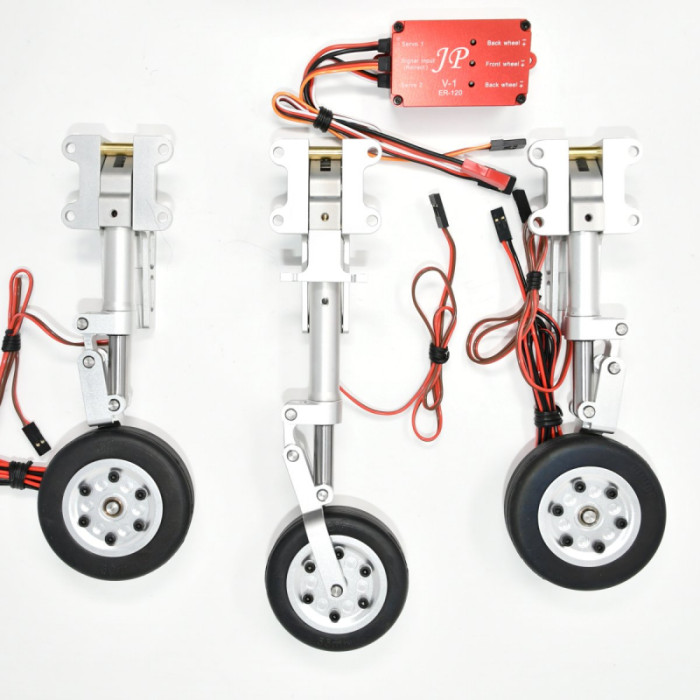

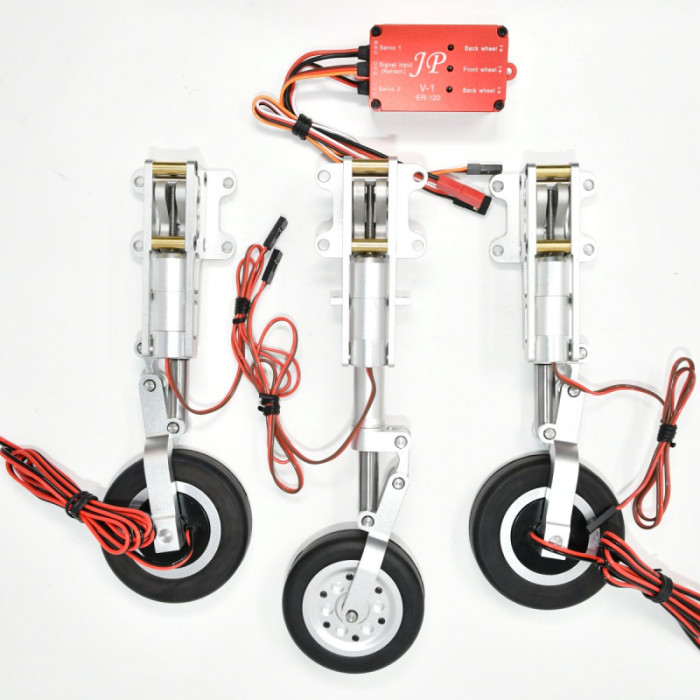

Package Content:

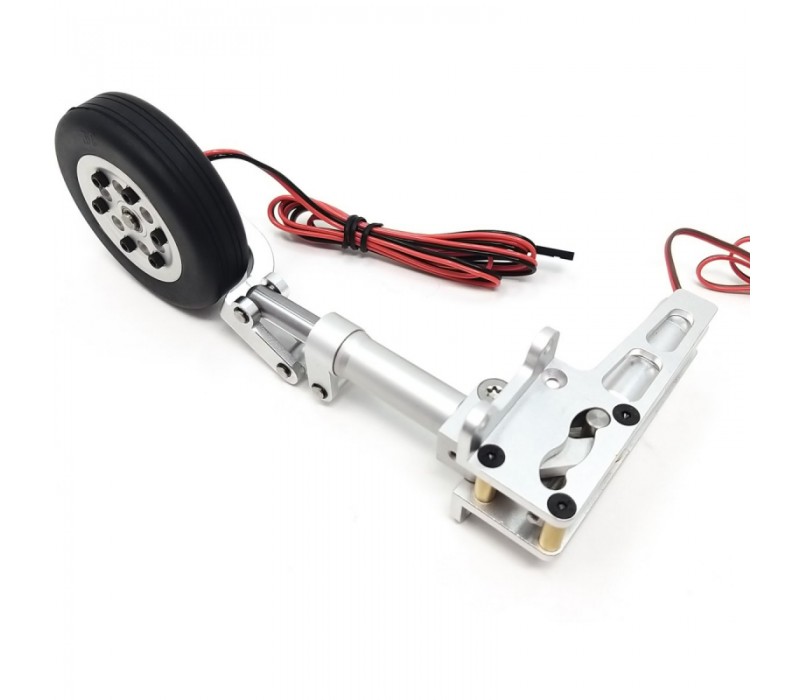

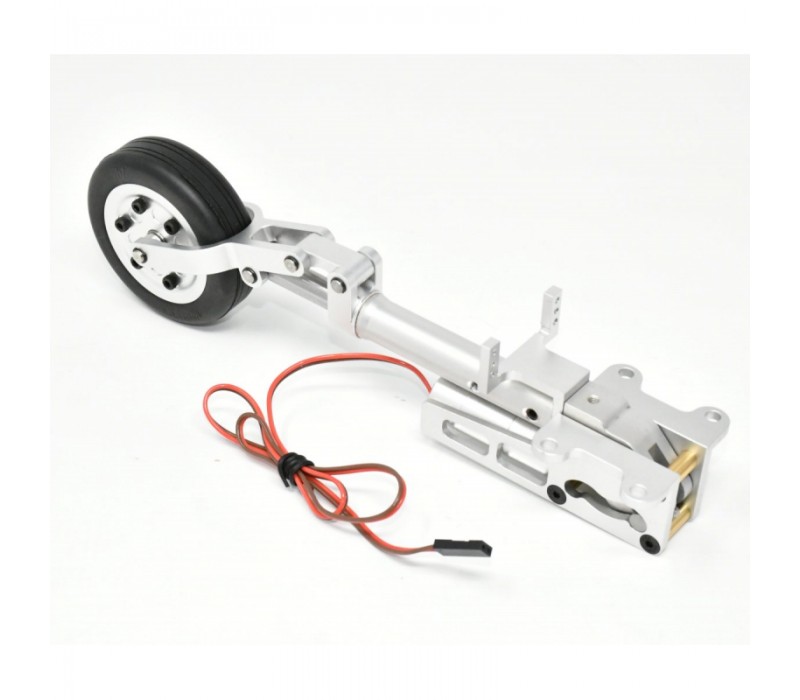

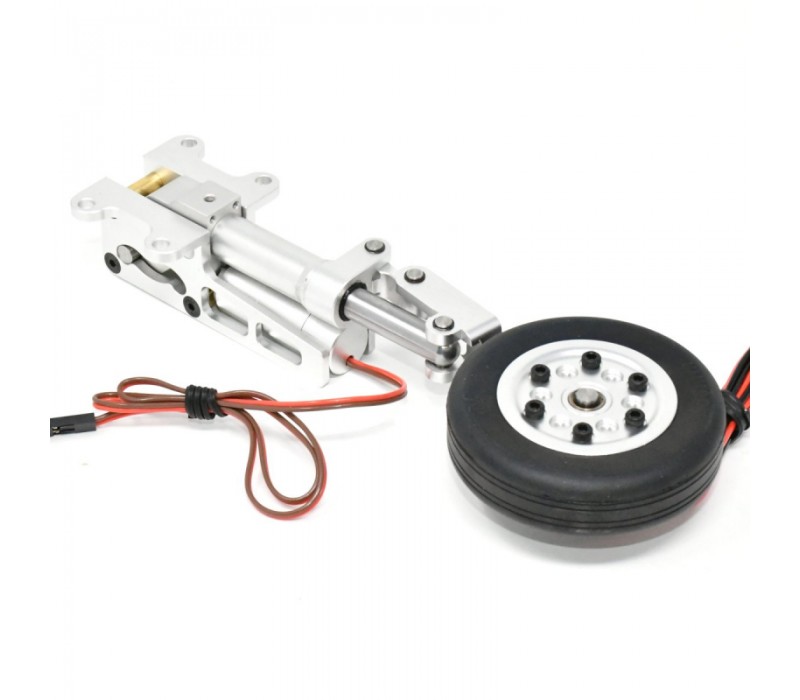

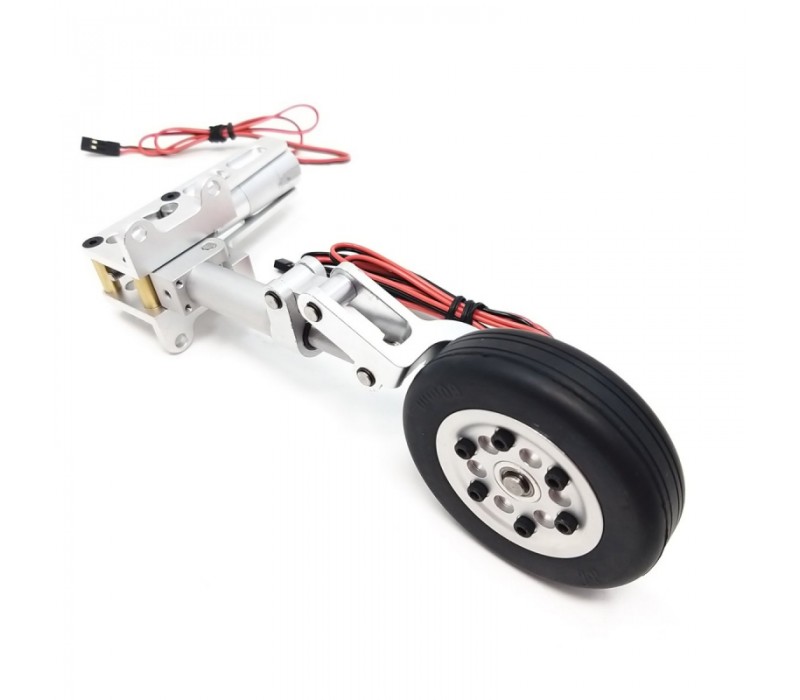

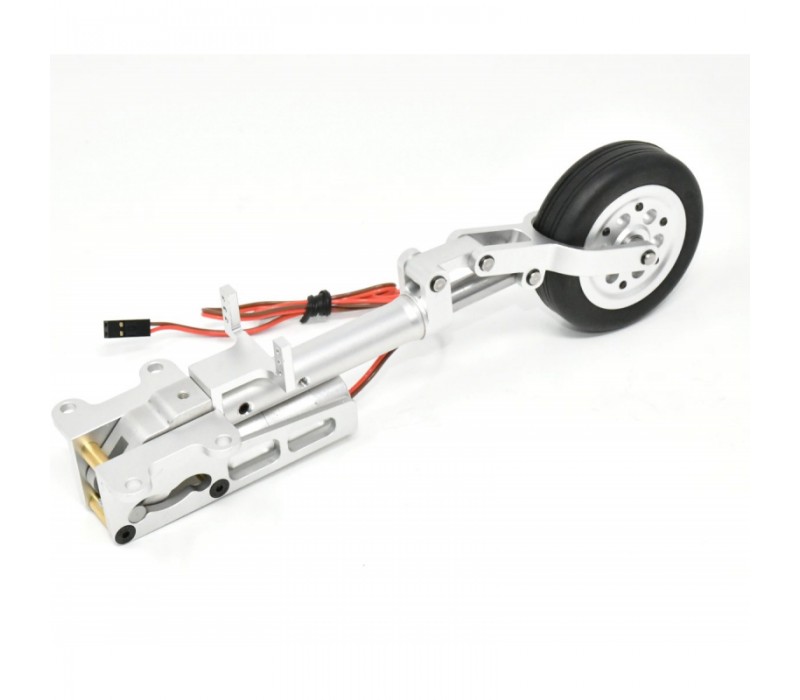

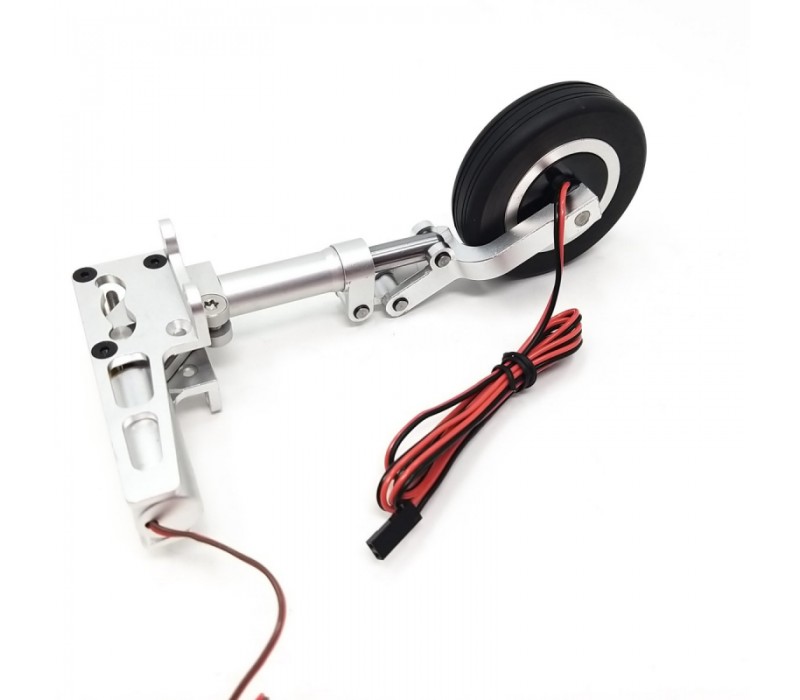

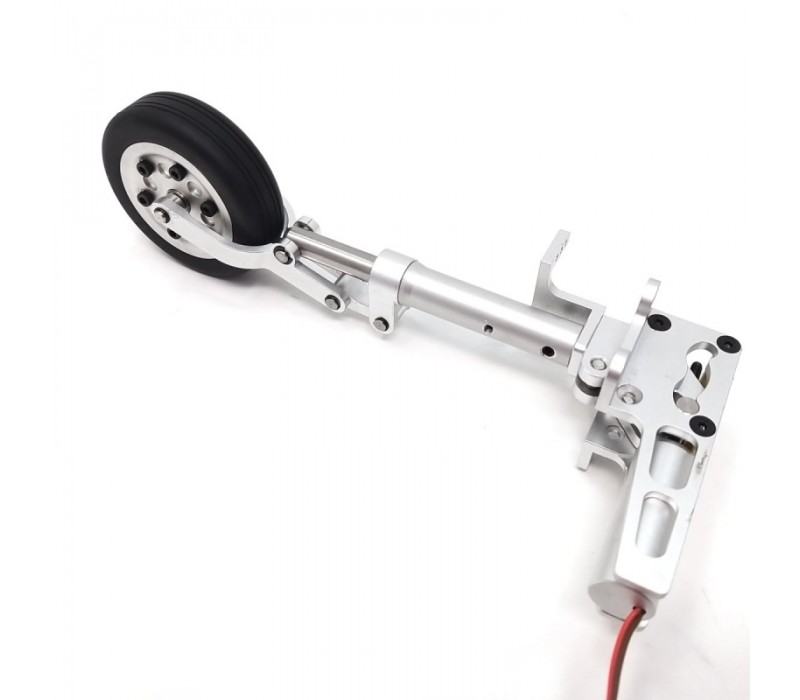

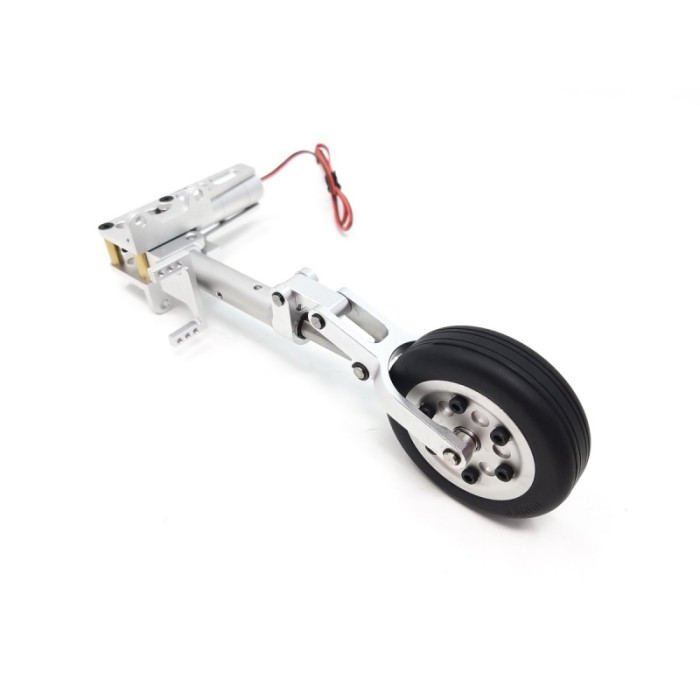

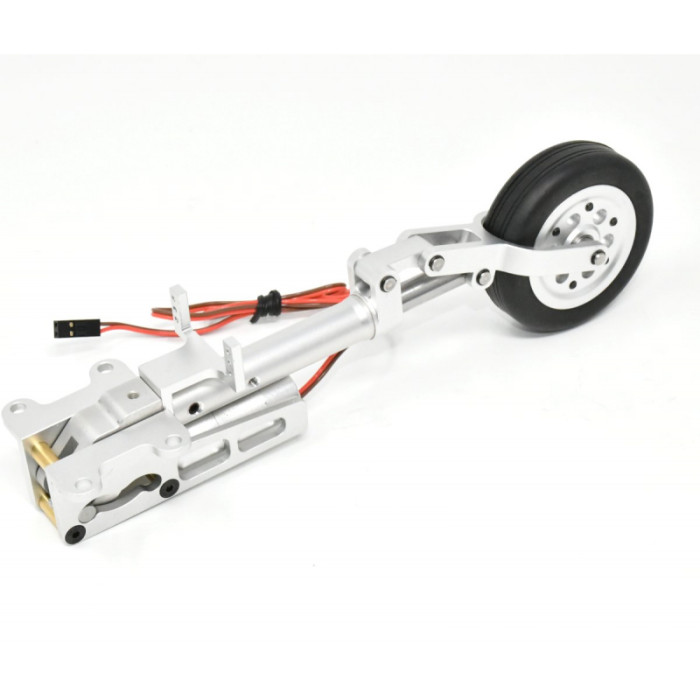

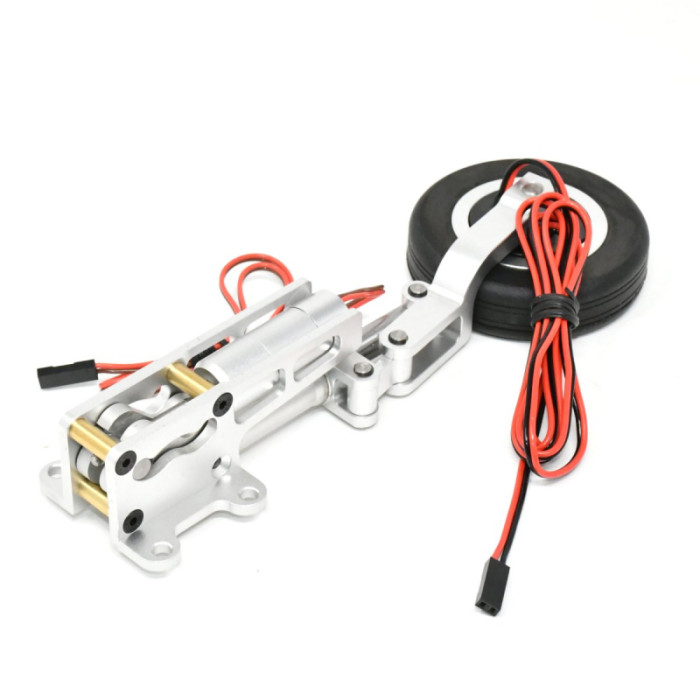

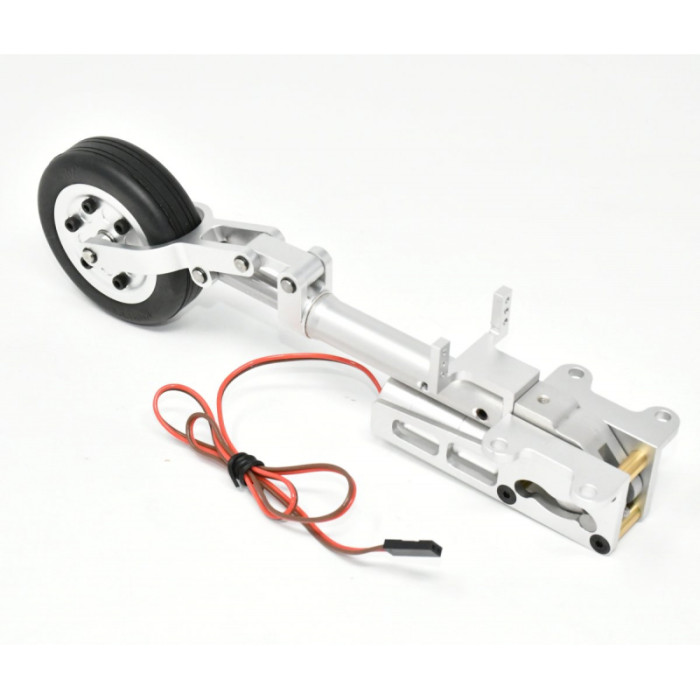

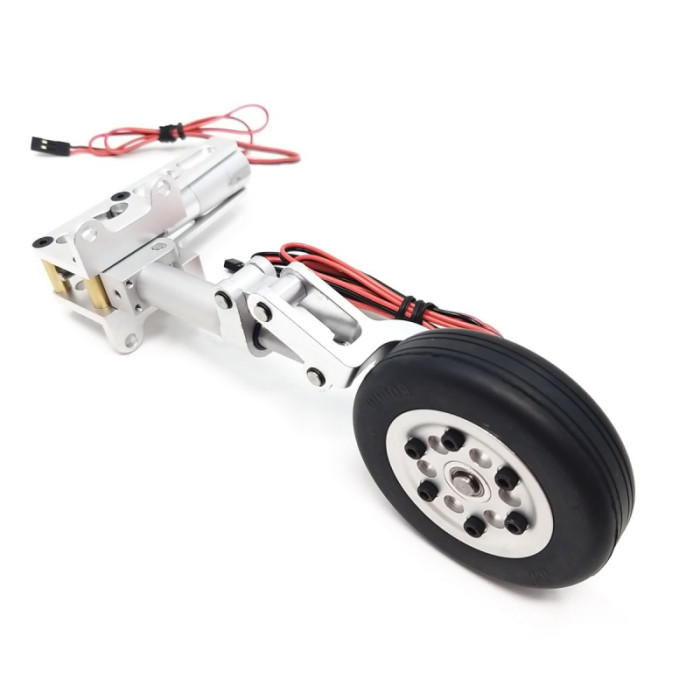

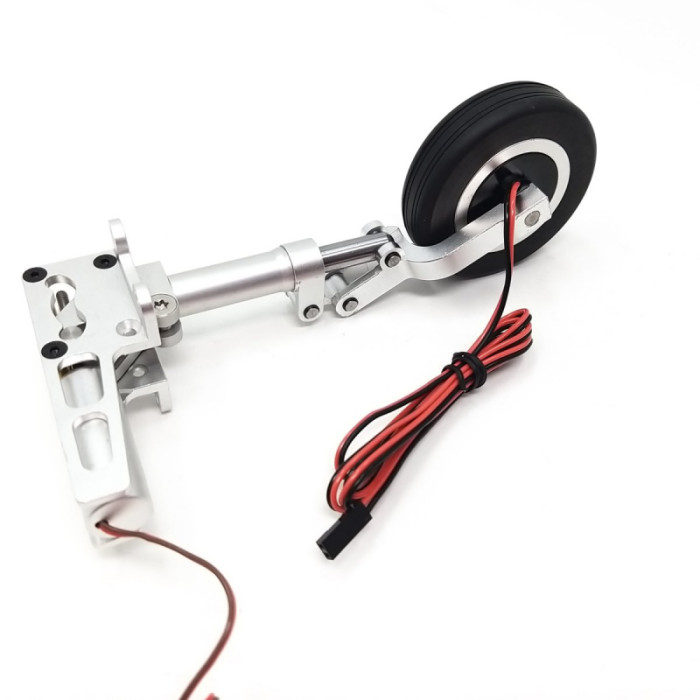

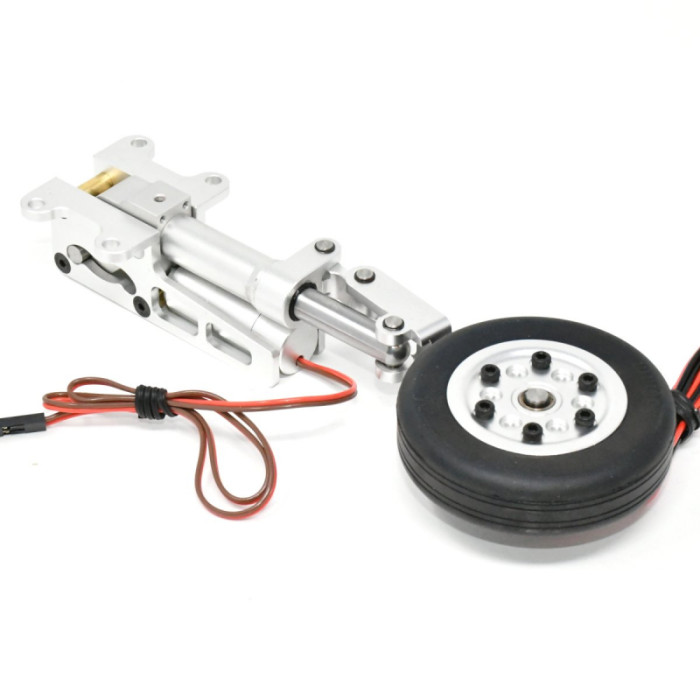

  • 2x Scale metal struts for main landing gear equiped with 60mm wheels & brakes system

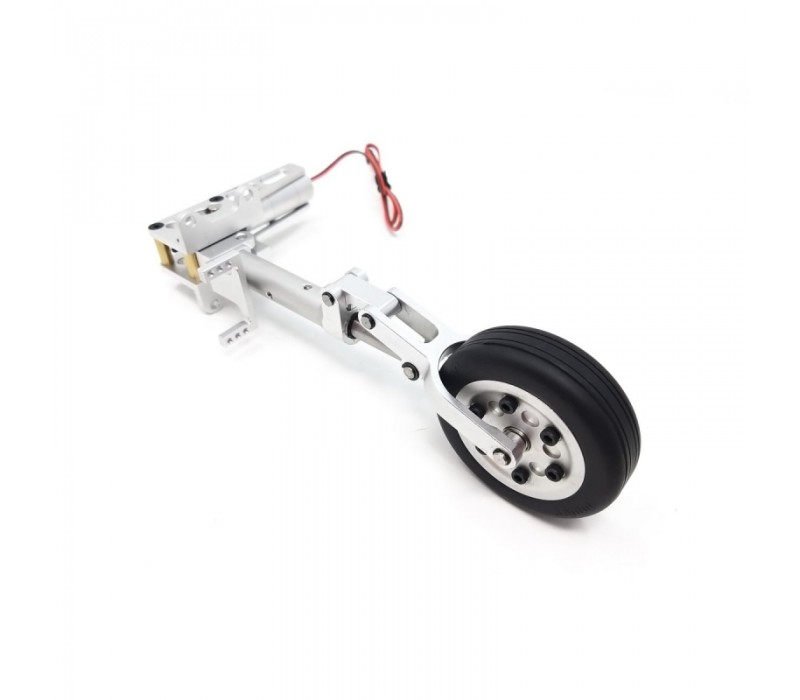

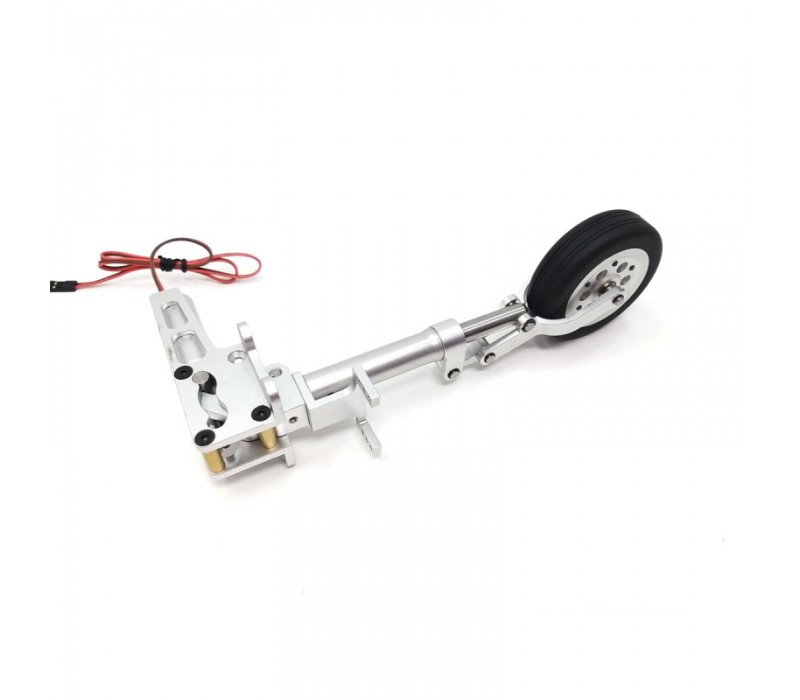

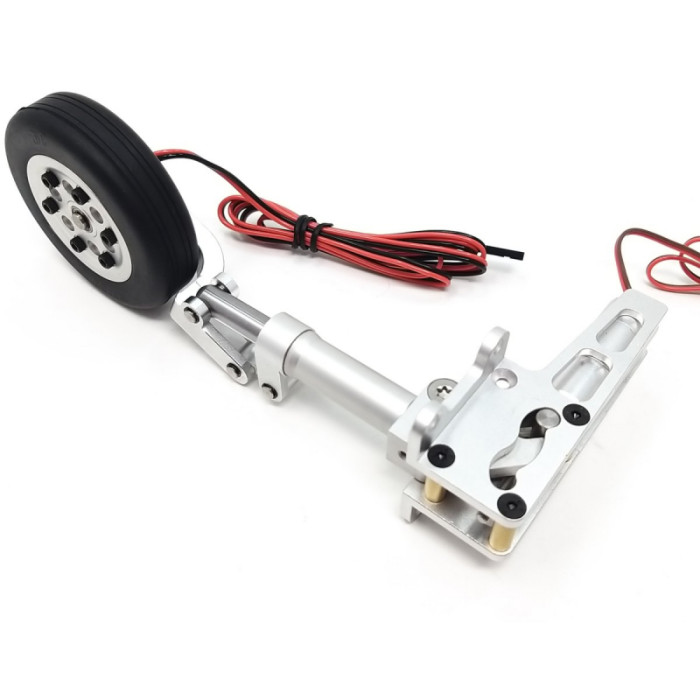

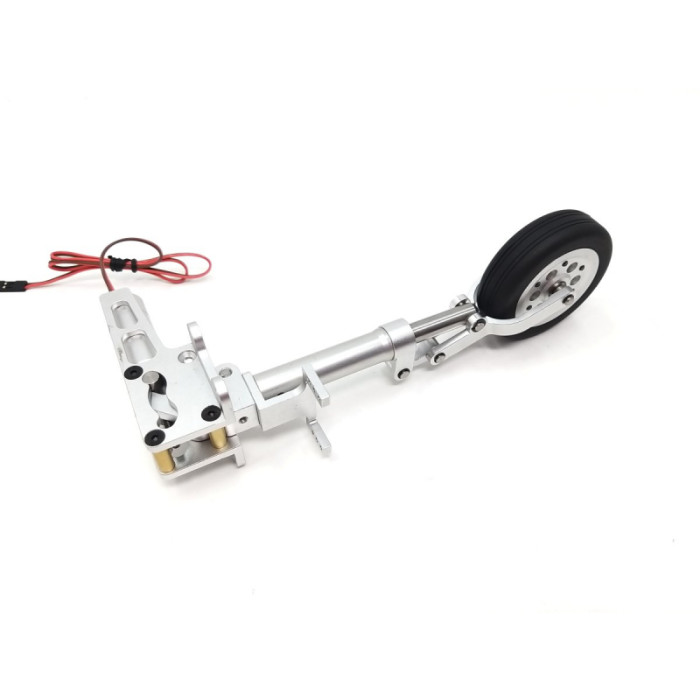

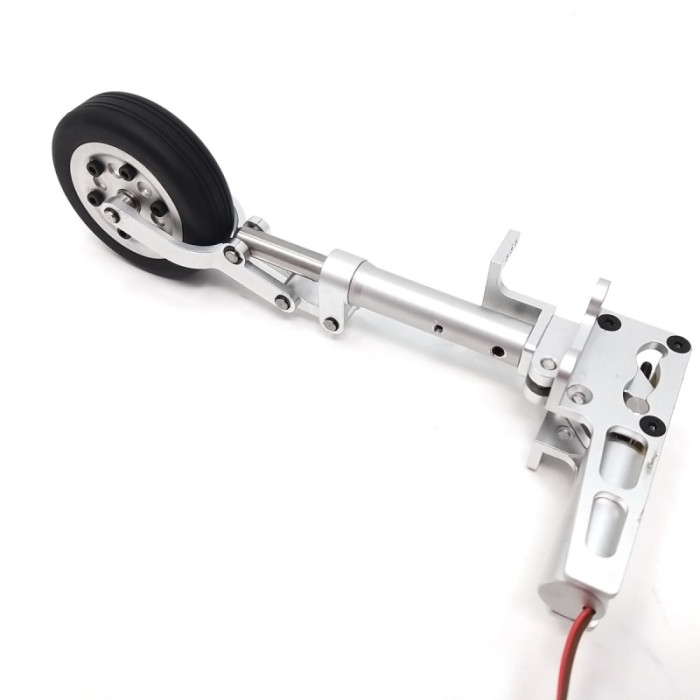

  • 1x Scale metal strut for nose gear equiped with 55mm wheel and Plate
  • 3x Electric Retracts JP Hobby ER-008 9mm (8kg/Low/Inside)

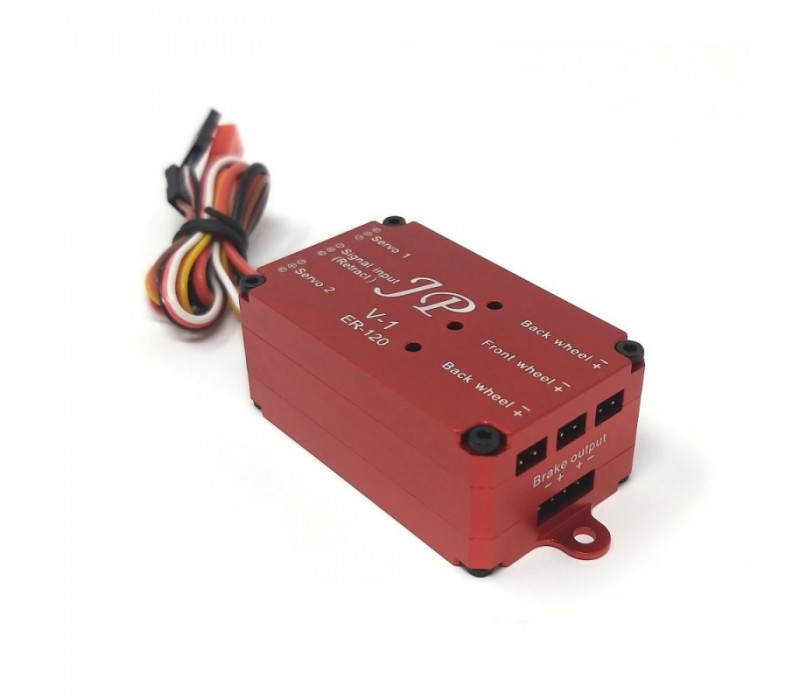

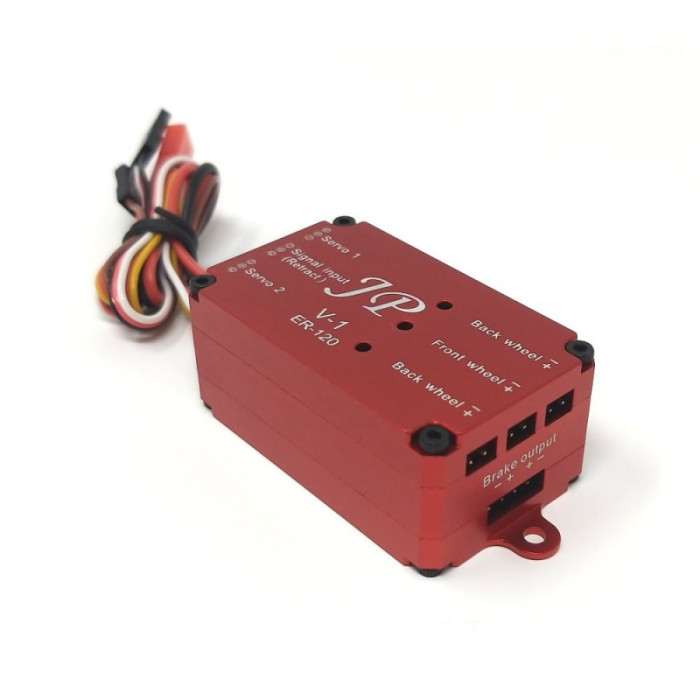

  • 1x JP Hobby ER-120 V1 version All Integrated controller retract box (doors opened when the gear is down)

Requires:

  • 2 cells battery
  • Nose direction servo
