JP Hobby ER-010 Metal Nose Strut Set (10kg/Low/Inside)

CNC Machined aluminium articulated and mecanical suspended « scale » electric landing complete gear set including 40mm wheel and 1 retract for planes up to 10kg.

Electric Nose Gear Retract ER-010
> Model Weight: until 10kg
> Strut diameter: 10mm
> Angle: 90 degrees
> Rotation direction: Inside (jack side)
> Mounting: Low
> Wheel: 1x 40mm

Specifications:

• Materials: Aluminium
• Suspension: mecanical
• Wheel: ball bearings mounted
• For planes up to 10kg (possible 11-12kg)
• Linkage for nose gear

Technical Specifications:

• Strut diameter: 10mm
• Wheel axle diameter: 4mm
• Nose gear wheel diameter: 40mm
• Weight: 157g (for the set including the strut, wheel and retract)

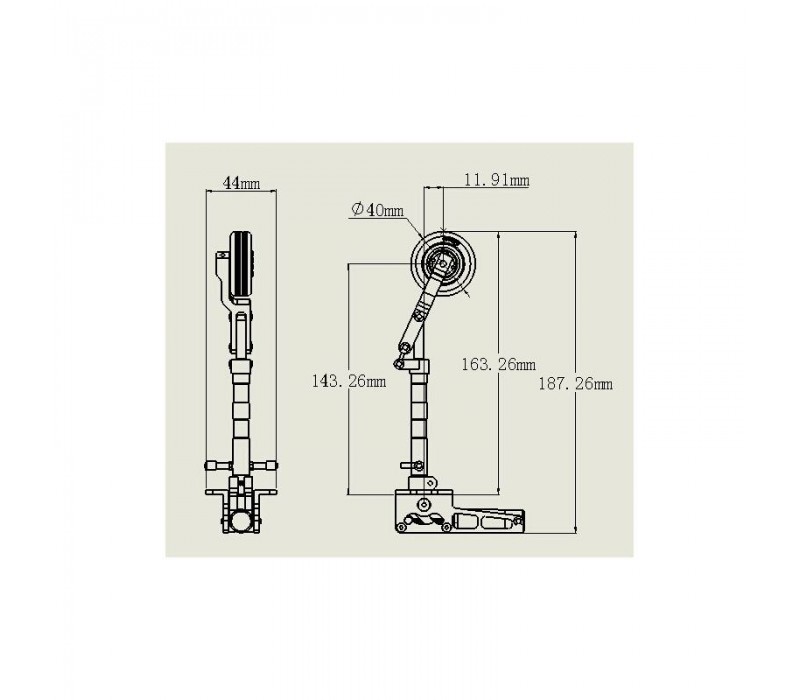

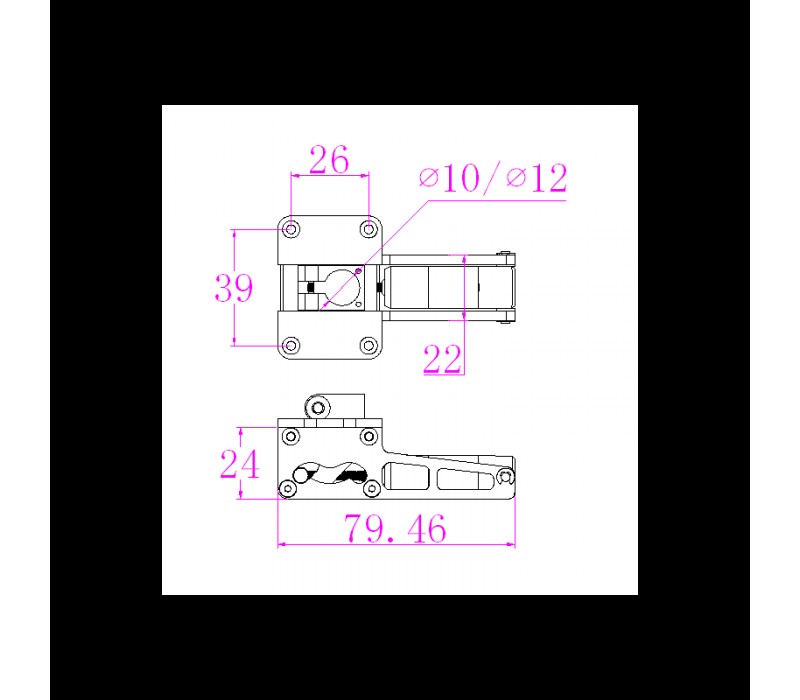

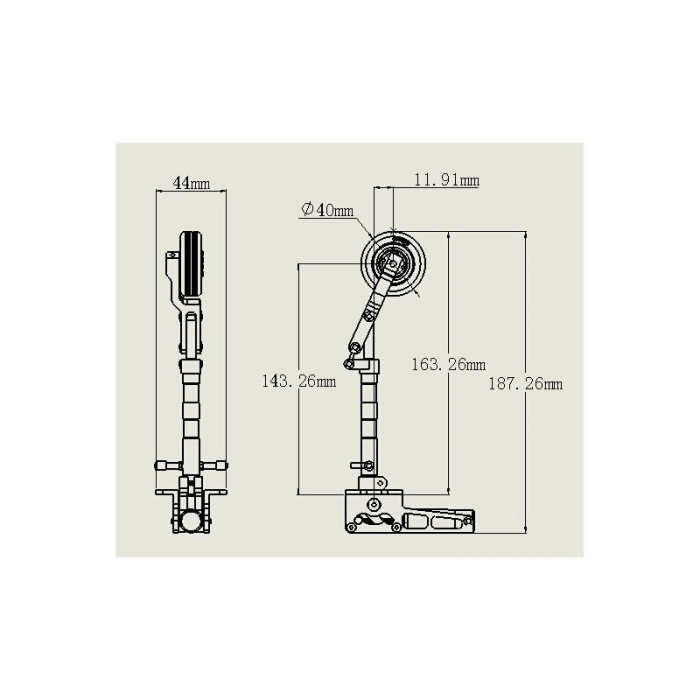

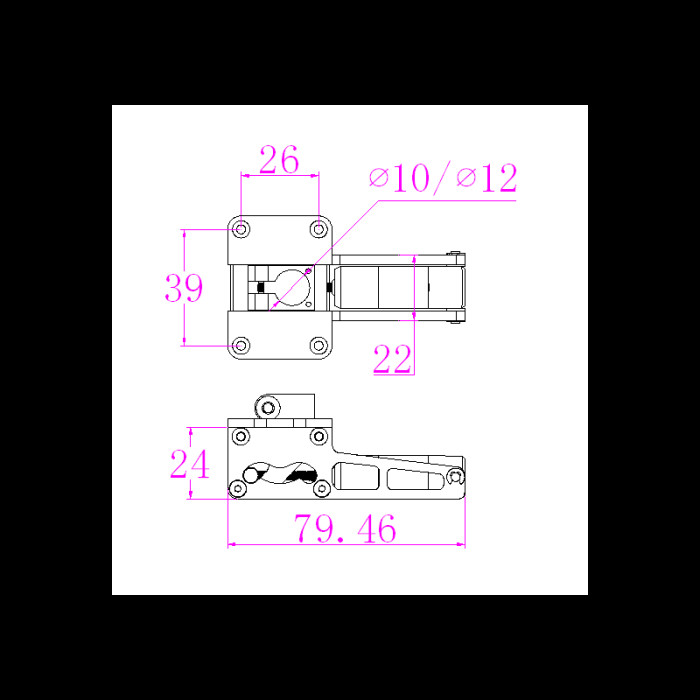

• Dimensions: for detailed dimensions, please refer to the pictures
• Working voltage: 5-8.4V

Package Content:

• 1x Scale metal strut nose gear equiped with a 40mm wheel and linkage
• 1x Electric Retract JP Hobby ER-120 10/12mm (15kg/Low/Inside)
