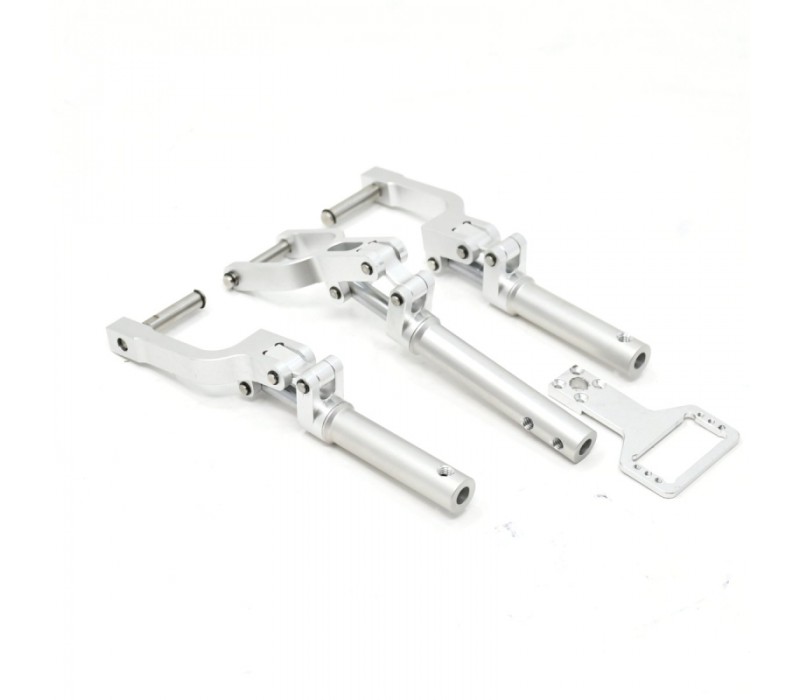

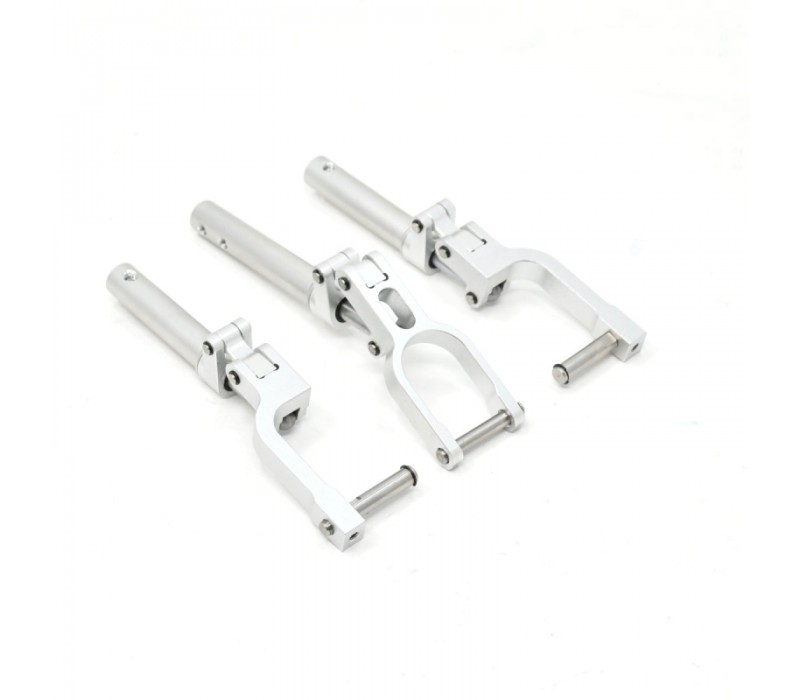

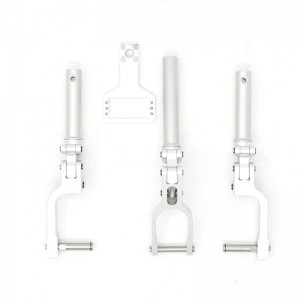

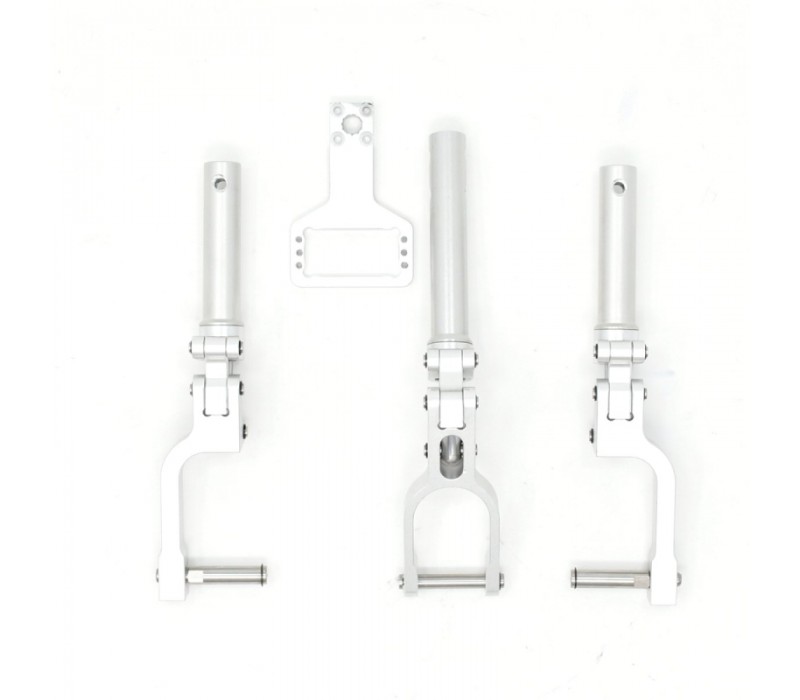

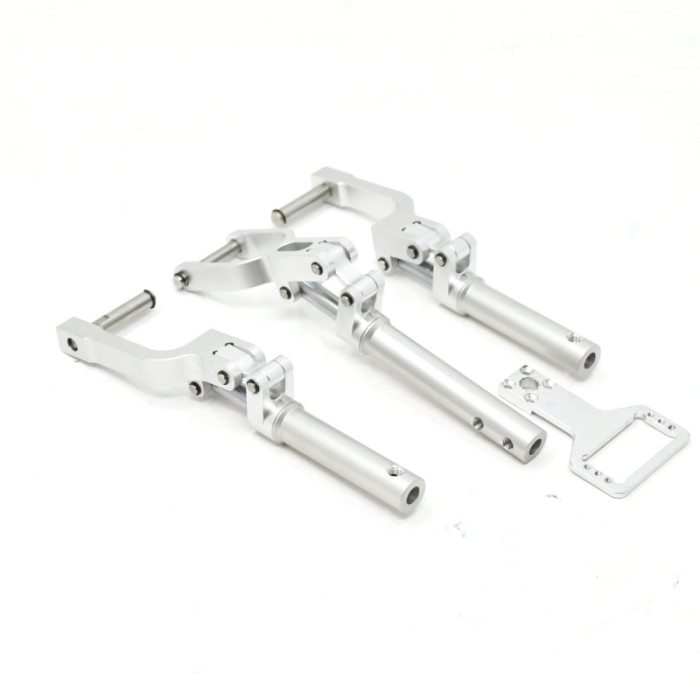

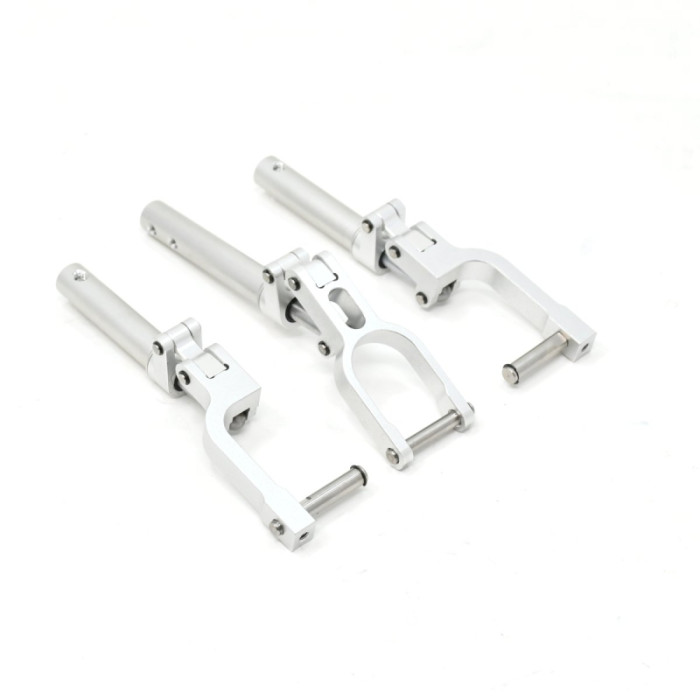

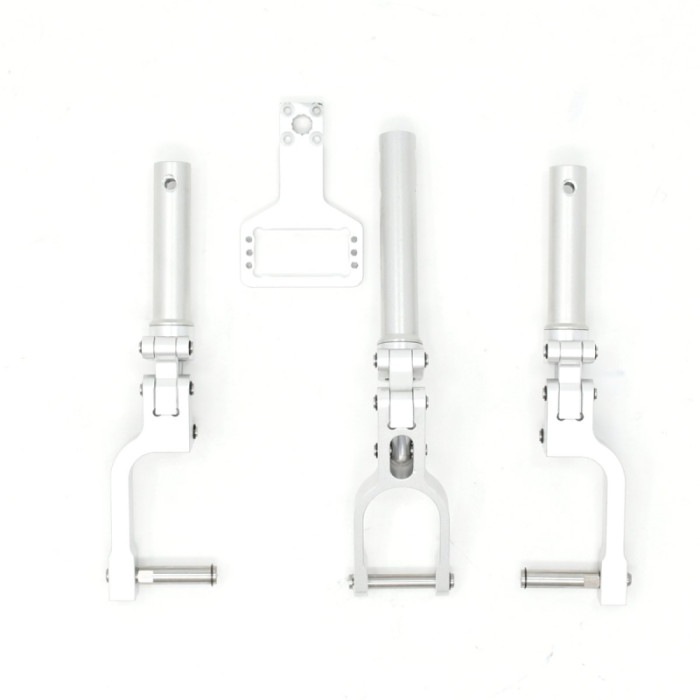

JP Hobby ER-005 V2 5mm Scale Metal Oleo Struts (T-One Micro T1 1.34m)

Main and Nose gear struts ER-005
> Model Weight: until 6kg
> Main/Nose struts diameter: 10mm/10mm
> Main/Nose mounting struts diameter: 5mm/5mm
> Main/Nose mounting wheels diameter: 4mm/4mm

Specifications:

• Materials: Aluminium
• Suspension: mechanical
• Model Weight: until 6kg
• Main/Nose struts diameter: 10mm/10mm
• Main/Nose mounting struts diameter: 5mm/5mm
• Length Main gear: 109mm (Under the trunnion to the center of the wheel axle)
• Length Nose gear: nc (Under the trunnion to the center of the wheel axle)
• Diameter max. main wheels: 65mm
• Diameter max. front wheel: 50mm
• Main/Nose mounting wheels diameter: 4mm/4mm
• Weight: 104g (for the 3 gears)

Package Content:

• 2x Scale metal struts for main landing gear
• 1x Scale metal strut for nose gear
