Specifications:

Continuous current: 12A
- Burst current (10S): 15A
- Input: 2S-3S Lipo
- Dimension (L*W*H): 25mm x 20mm x 7mm
- Weight :  9g (wires Included)
- BEC Mode: Linear
- BEC Output: 1A/5V
- Programmable: Yes



Features:

 Based on Simon K firmware, further optimized to the perfect drive performance.
- Low-voltage protection, over-heat protection and self-check functions.
- Separate power supply for MCU and BEC, enhancing the ESC’s ability of eliminating magnetic interference.
- Parameters of the ESC can be set via program card or transmitter.
- Throttle range can be set to be compatible with different receivers.
- Equipped with built-in linear BEC or switch BEC.
- Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.



Package Content:

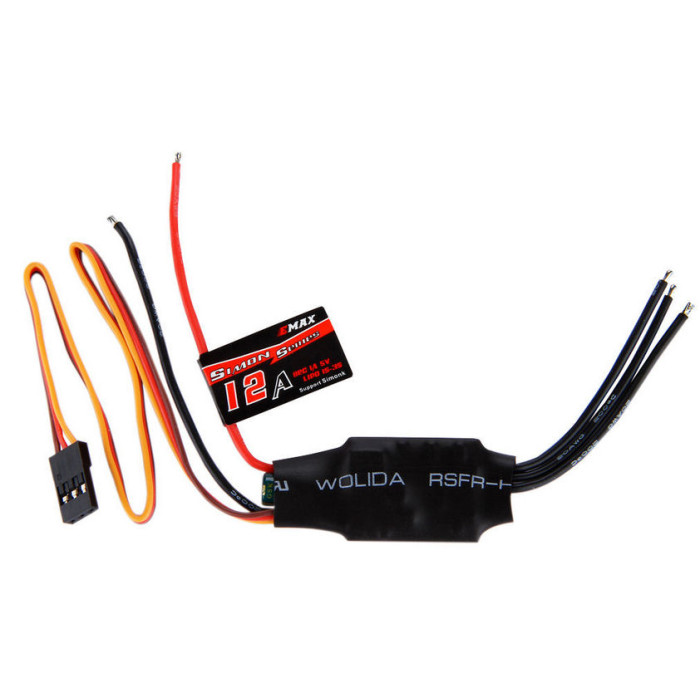

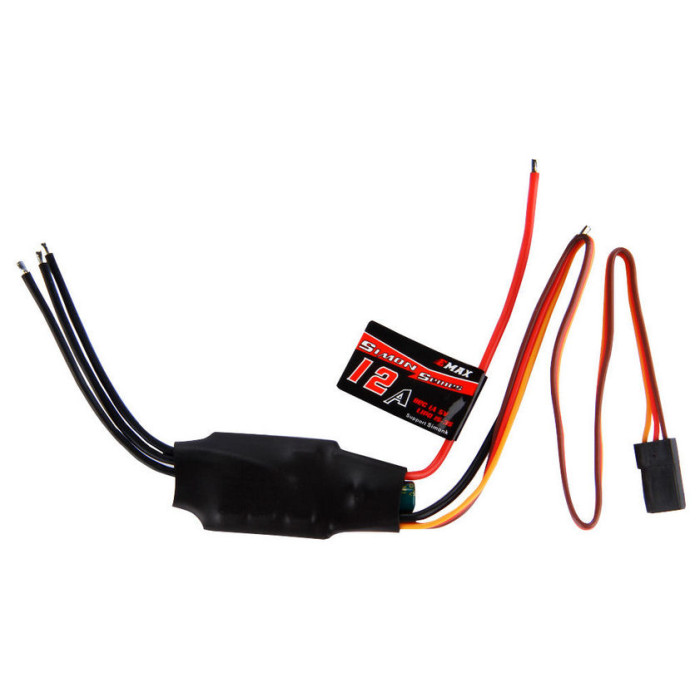

1 Emax SimonK Firmware 12A ESC
1x Manual

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

EMAX 12A ESC

  • Product Code: EMAX12A
  • Availability:
    In Stock
  • $9.99
