FEATURE:

-- High performance digital high voltage brushless standard servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- High quality brushless motor
-- Full CNC aluminium Shell structure
-- Dual ball bearings
-- Waterproof

SPECIFICATIONS:

Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: Brushless Motor
Operating Speed (6.0V): 0.152sec/60°
Operating Speed (8.4V): 0.123sec/60°
Stall Torque (6.0V): 20.25 kg.cm (281.22oz/in)
Stall Torque (8.4V): 25.31kg-cm (351.47 oz/in)
Dimensions: 40.5X20.5X36mm/1.59X0.80X1.43in
Weight:  70.1g (2.47oz)
Connector Wire Length: JR  265 mm (10.43in)
Bearing: 2BB
Tooth Count: 25

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

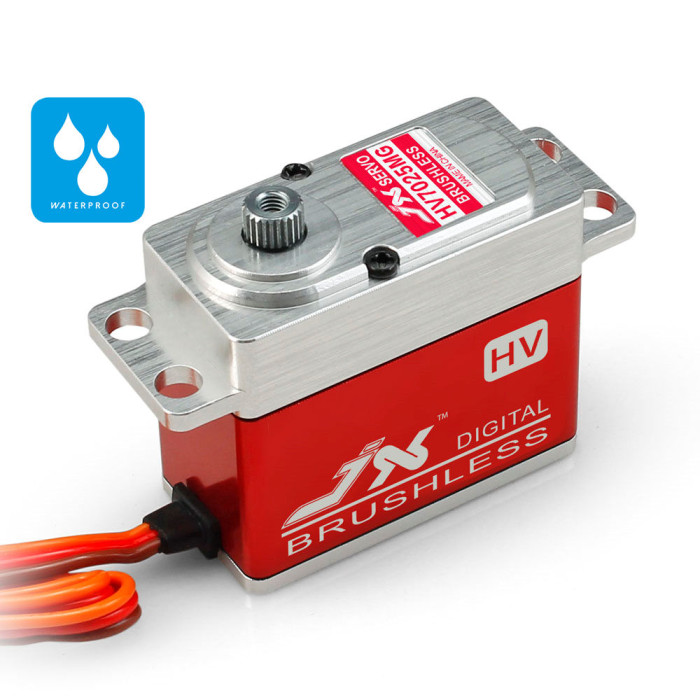

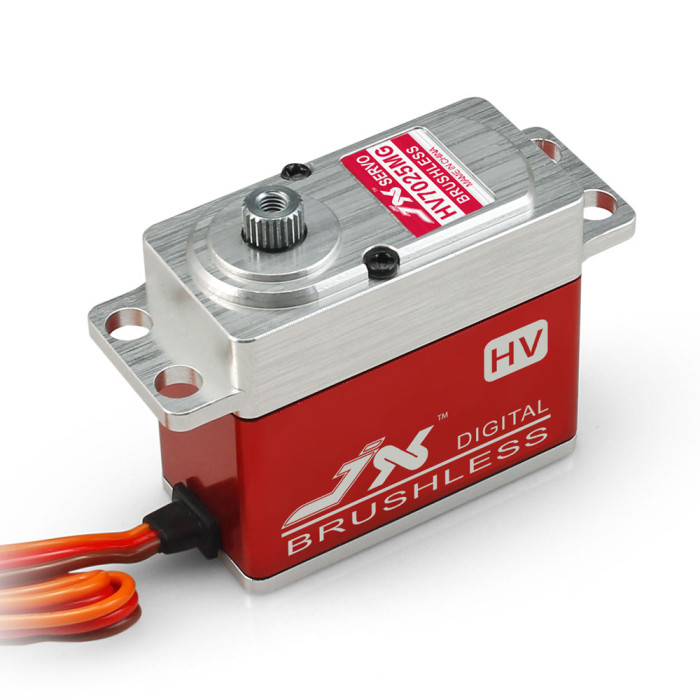

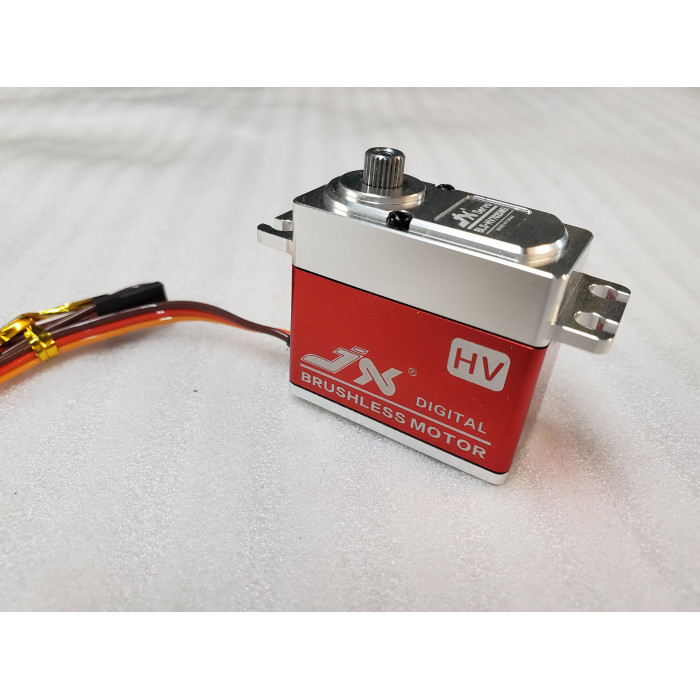

JX BLS-HV7025MG 25KG Full CNC Aluminum Shell

  • Product Code: JX BLS-HV7025MG
  • Availability:
    35
  • $69.00
