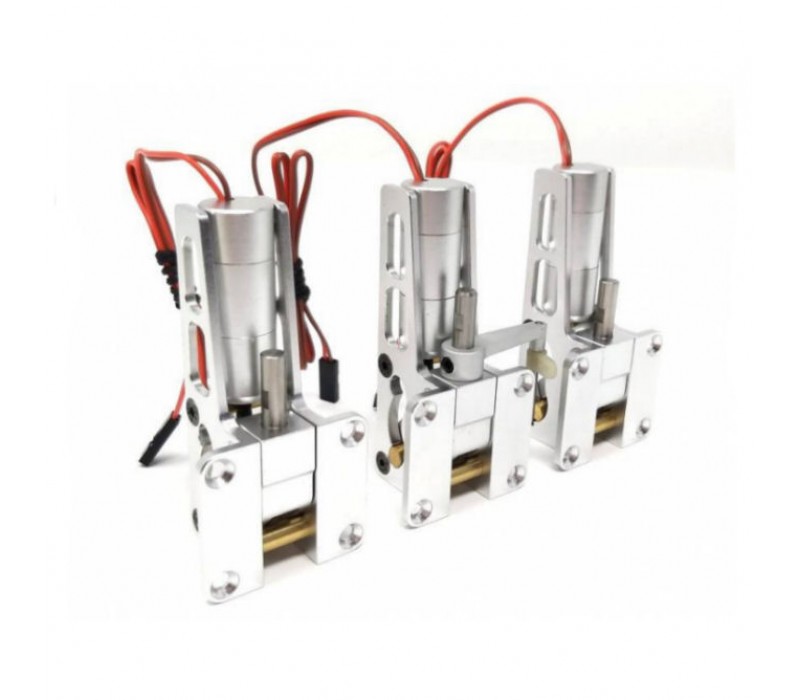

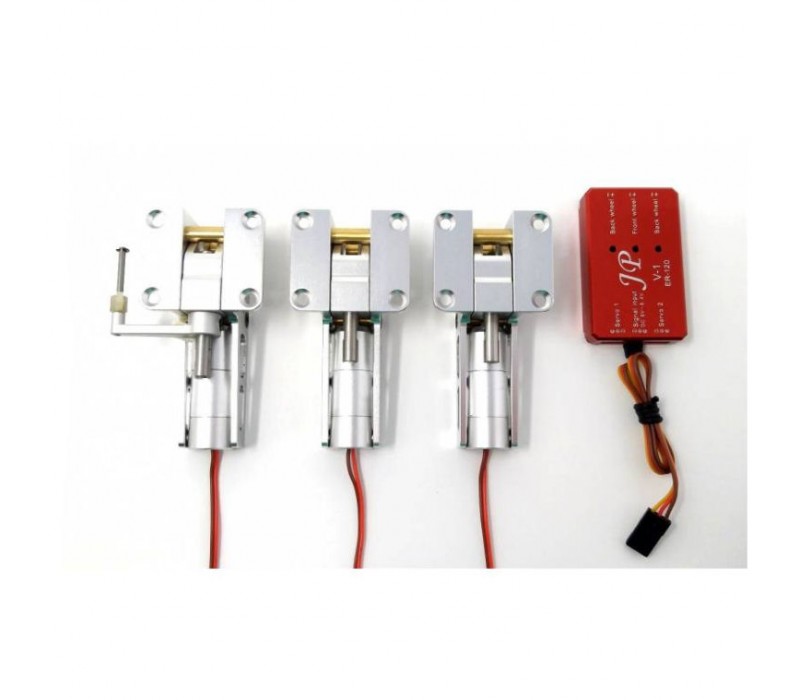

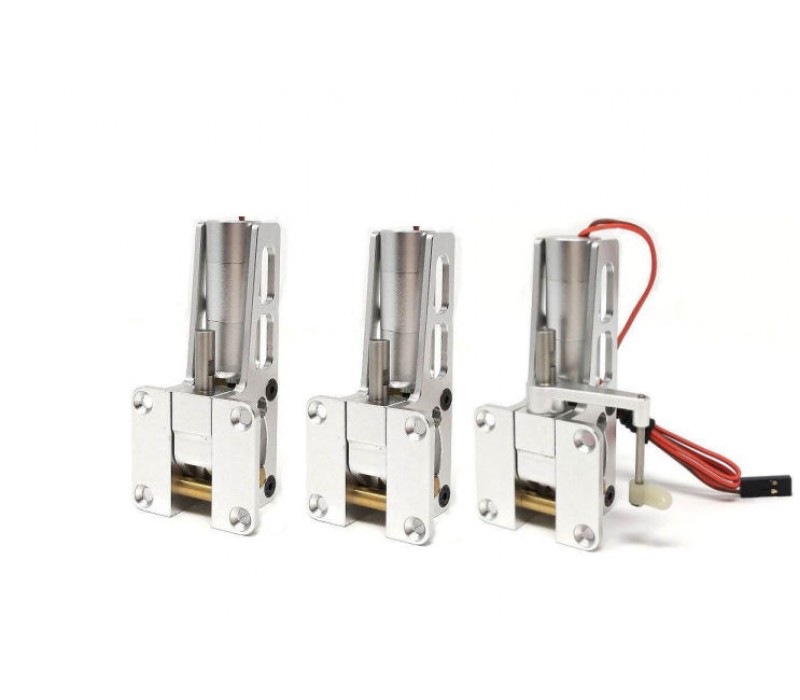

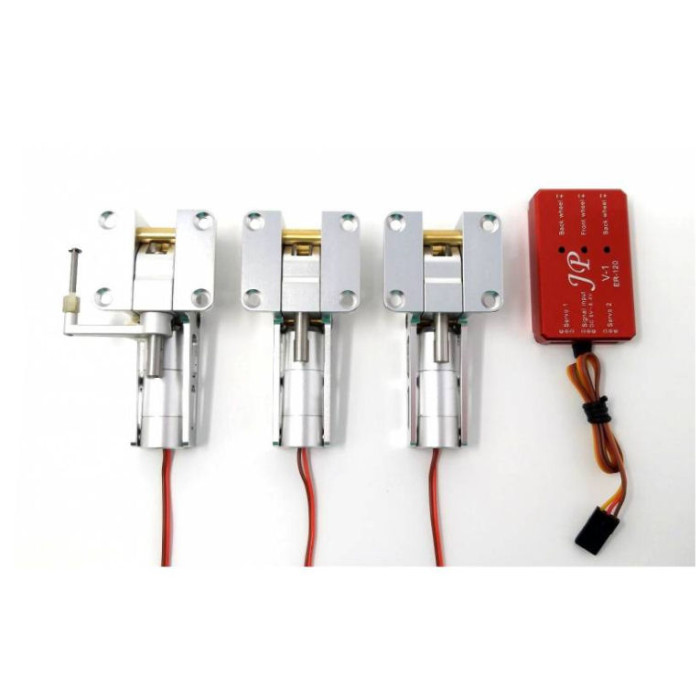

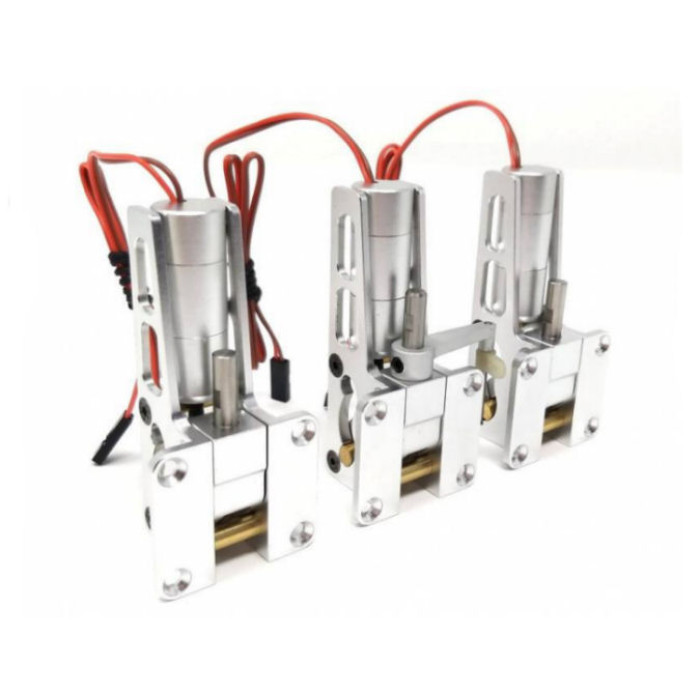

JP Hobby ER-005 5mm Alloy Electric 3 Retracts Set (6kg/Low/Inside) + Sequencer (optional)

Specifications:

  • Material: Aluminium
  • Struts diameter: 10mm
  • Pin Diameter Size: 5mm
  • For plane: up to 6 kg (possible 7-8kg)

Technical Specifications:

  • Retracts weight: 2 x 62.8g + 1 x 66g
  • Control module box weight (option): 19g
  • Retracts sizes: 26mm x 73mm x 18mm
  • Retracts mounting plate sizes: 33mm x 37mm
  • Control box sizes (option): 53mm x 32mm x 10mm
  • Length with motor: 74mm
  • Working Voltage:  5 - 6V
  • Speed: 5.2 sec (5v) - 4.3 sec (6v)

Package:

  • 2x Main Retract JP Hobby ER-005 5mm units (6kg/Low/Inside)
  • 1x Nose Gear Steerable Retract JP Hobby ER-005 5mm unit (6kg/Low/Inside)

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

JP Hobby ER-005-S Retract Set

  • Product Code: ER-005-S
  • Availability:
    2
  • $120.00
  • Ex Tax: $120.00

Available Options
